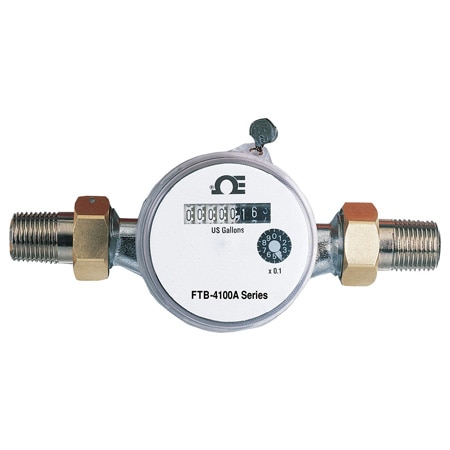

OMEGA FTB-4107A Turbine Flow Meter For Water Totalization (3/4 in, NPT Male, 20 GPM)

Width: 2.75 in

Height: 3.03 in

Length: 5.12 in

Weight: 0.6 kg

Display: Mechanical Counter

Accuracy: ± 1.5 %

Approvals: CE

Sensor Type: N/A

Installation: 10 pipe diameters upstream, 5 downstream

Accuracy Note: From 10% of continuous to maximum flow: ±1.5% of reading; below 10% of continuous flow: ±2% of reading

Supply Voltage: 24 Vac/Vdc

Electrical Output: None

Materials, Wetted: Brass, EDPM, Polyimide, Polypropylene, Sapphire, Stainless Steel

Pressure Drop, Max: 3.6 psi

Media Compatibility: Liquids

Electrical Connection: None

Operating Pressure, Max: 150 psi

Process Connection Size: 3/4 in

Process Connection Type: NPT Male

Volumetric Flow Rate, Max: 20 GPM

Volumetric Flow Rate, Min: 0.22 GPM

Operating Temperature, Max: 90 °C
