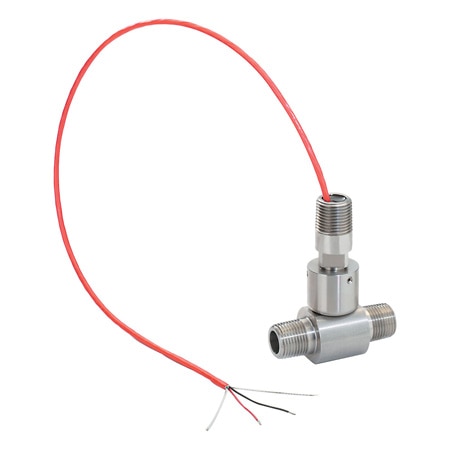

OMEGA FTB-1317 316 SS Turbine Flow Meters w/Pulse or Current Output (1 1/2 in, NPT Male, 200 l/min)

Accuracy: ± 0.5 %

Linearity: ±0.01%

Output Signal: Current

Response Time: 1/F + 25 msec

Certifications: CE, RoHS 2

Supply Current: 8 mA

Supply Voltage: 20 to 28 Vdc

Electrical Output: 4 to 20 mA, 2000 Hz

Enclosure Ratings: Hazardous Location Rated

Materials, Wetted: Nickel, Stainless Steel, Tungsten Carbide

Media Compatibility: Liquids

Frequency Input Range: 0.25 Hz to 5 kHz

Operating Pressure, Max: 5000 psi

Process Connection Size: 1 1/2 in

Process Connection Type: NPT Male

Volumetric Flow Rate, Max: 200 l/min

Volumetric Flow Rate, Min: 0.3 l/min

Datasheet
