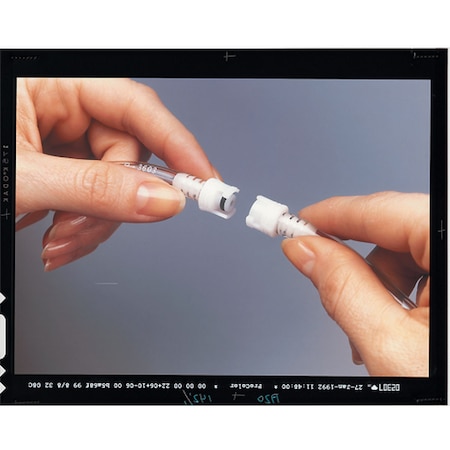

OMEGA FT-SMFPM-02-12 Subminiature Thermoplastic Quick Couplings (1/8 in, Barbed Fitting, 1/8 in, Quick Coupling Female, Coupling, Barbed Fitting)
ManufacturerOMEGA(View more products from this manufacturer)
ModelFT-SMFPM-02-12
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 0.9 in
Fitting: Coupling
Diameter: 0 in
Materials: Polypropylene, Acetal, 316 Stainless Steel
Tube Size: 3 in ID
Port 1 Size: 1/8 in
Port 1 Type: Barbed Fitting
Port 2 Size: 1/8 in
Port 2 Type: Quick Coupling Female
Pressure Type: Vacuum
Panel Hole Diameter: 7/16 in
Mounting Orientation: Straight
Additional Features 1: Shutoff Body Half
Operating Pressure Note: Vacuum to 6.9 bar (100 psi)
Operating Pressure, Max: 6.9 bar
Process Connection Type: Barbed Fitting
Operating Temperature, Max: 82 °C
Operating Temperature, Min: -40 °C
