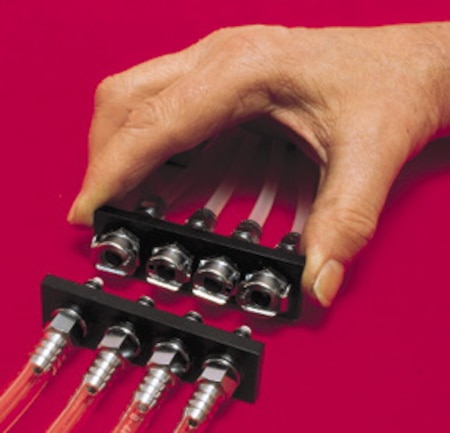

OMEGA FT-LM120-04 Speciality Quick Couplings For 3 to 5 Lines (1/4 in, Ferruless Compression, 1/4 in, Quick Coupling (Multiple Mount Bodies), Coupling, Compression Fitting)

Length: 0 in

length: 0 in

Fitting: Coupling

Diameter: 0 in

Materials: Brass, Acetal, 316 Stainless Steel, NBR

Tube Size: 1/4 in OD x 0.17 in ID

Port 1 Size: 1/4 in

Port 1 Type: Ferruless Compression

Port 2 Size: 1/4 in

Port 2 Type: Quick Coupling (Multiple Mount Bodies)

Flow Diameter: 1/4 in

Pressure Type: Vacuum

Mounting Orientation: Straight

Additional Features 1: Straight Thru

Retaining Ring Length: None

Operating Pressure Note: 500psi /no. of stations

Operating Pressure, Max: 500 psi

Process Connection Type: Compression Fitting

Operating Temperature, Max: 82 °C

Operating Temperature, Min: -40 °C
