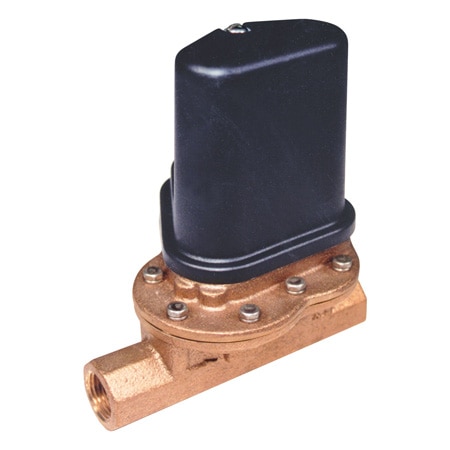

OMEGA FSW-32A Non-magnetic Industrial Flow Switches - Ideal for Rusty Water (1 in, NPT Female)

Width: 4.94 in

Height: 5.63 in

Weight: 3.5 lb

Materials: Brass, Stainless Steel, Plastic, Bronze

Sensitivity: 5% at upper end of flow range, 25% at lower end of flow range (% flow change required to activate switch)

Switch Type: SPDT NO/NC, Selectable

Switch Rating: 15 A

Pressure Drop, Max: 15 psi

Pressure Drop, Min: 2 psi

Switch Rating Note: 15 A @ 125 or 250 Vac; 10,000,000 operations median

Media Compatibility: Water

Electrical Connection: Cable Gland for 1/4 in Cable with Screw Terminal block

Operating Pressure, Max: 300 psi

Process Connection Size: 1 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 8 GPM

Volumetric Flow Rate, Min: 4 GPM

Electrical Connection Note: Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

Operating Temperature, Max: 82 °C

Operating Temperature, Min: 4 °C
