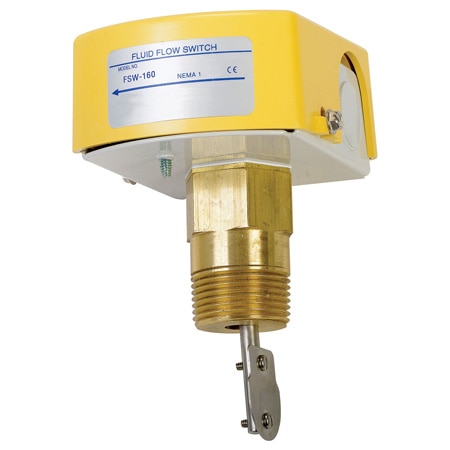

OMEGA FSW-160 Heavy Duty Paddle Flow Switch (0 in, 1 in, NPT Male, 0 ft/s)

Accuracy: ± 1 %

Materials: Stainless Steel, Brass

Hysteresis: 10% at upper end of flow range, 30% at lower end of flow range (∆ Flow Rate to Activate/ Deactivate Switch)

Sensitivity: 10% @ upper end of range; 30% @ lower end of range

Switch Type: SPDT NO/NC, Selectable

Paddle Length: 1.3 in

Switch Rating: 15 A

Pipe Size, Max: 0 in

Pipe Size, Min: 0 in

Supply Voltage: 125 / 250 Vac

Enclosure Ratings: IP10, NEMA Type 1

Pressure Drop, Max: 1 psi

Switch Rating Note: 15 A, ½ hp at 125 or 250 Vac 0.5 A at 125 Vdc (tungsten lamp) 0.25 A @ 250 Vdc (tungsten lamp)

Media Compatibility: Liquids

Electrical Connection: 1/2 in NPS female Conduit with Screw Terminal block

Linear Flow Rate, Max: 0 ft/s

Linear Flow Rate, Min: 0 ft/s

Operating Pressure Note: Operating Pressure: 8.6 bar (125 psi) @ 21°C (70°F), 3.4 bar (50 psi) @ 100°C (212°F)

Operating Pressure, Max: 200 psi

Process Connection Size: 1 in

Process Connection Type: NPT Male

Process Temperature, Max: 121 °C

Process Temperature, Min: 0 °C

Volumetric Flow Rate, Max: 8 GPM

Volumetric Flow Rate, Min: 4 GPM

Operating Temperature, Max: 66 °C

Operating Temperature, Min: 0 °C

Material Construction Option: N/A
