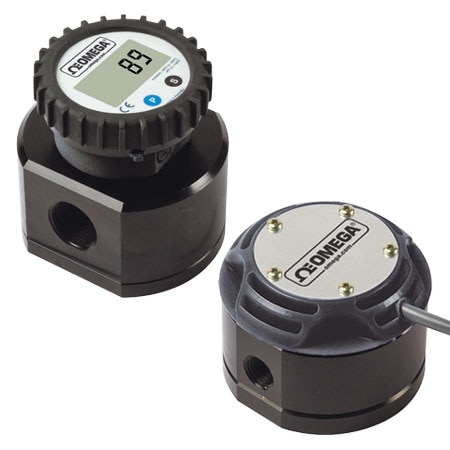

OMEGA FPD3304-D Positive Displacement Flow Meter for Solvents (1 1/2 in, NPT Female, 0.5 GPM)

Display: LCD

Accuracy: ± 0.5 %

Mounting: Pipe

Sensor Type: Reed Switch, Hall Effect

Display Note: Display: 7-digit/12 mm (0.47") upper, 7-digit/7 mm (0.28") lower all, Rate: User defined, Total: Resettable

Meter Height: 3.8 in

Accuracy Note: ±0.5% of reading

Repeatability: ±0.03%

Flow Rate Note: < 5cPs (0.8 to 6.6) , > 5cPs (0.5 to 8)

Supply Voltage: 18 to 30 Vdc

Viscosity Range: 1000 cPs

Housing Material: Polypropylene

Number of Digits: 7

Electrical Output: N/A

Enclosure Ratings: IP67, NEMA Type 6

Supply Power Note: Hall Effect Sensor Power : 4.5 to 24 Vdc, 7.5 mA , Reed Senseor Power : 30 Vdc, 500 mA

Supply Power Type: Battery

Media Compatibility: Solvents

Electrical Connection: Stripped Leads

Operating Pressure, Max: 2000 psi

Process Connection Size: 1 1/2 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 8 GPM

Volumetric Flow Rate, Min: 0.5 GPM

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C
