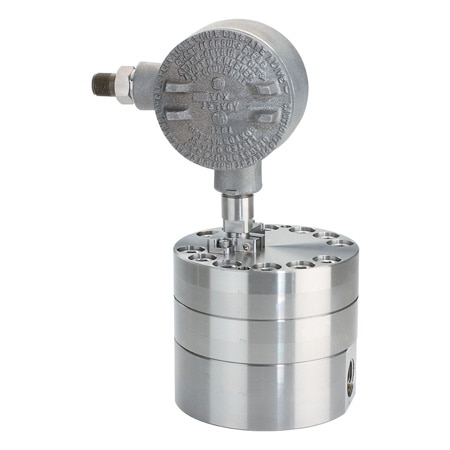

OMEGA FPD2005 High Pressure and Temperature Positive Displacement Flow Meters (1 1/4 in, NPT Female, 0.5 GPM, Amplified Square Wave)

Display: No Display

Accuracy: ± 0.5 %

Linearity: ±0.01% rdg

Duty Cycle: 50 % ± 15 %

Sensor Type: Hall Effect

Bearing Type: N/A

Accuracy Note: ±0.5% over 10:1 turndown with 30cP fluid

Repeatability: ±0.1%

Amplitude Note: 1 to 40 Vp-p

Driving Method: 50 mA max resistive load

Supply Voltage: 10 to 28 Vdc

Viscosity Range: 200 cSt

Housing Material: Aluminum

Output Frequency: 0.5 to 2000 Hz

Electrical Output: Amplified Square Wave

Supply Power Note: 8 mA @ 12 Vdc,12 mA @ 24 Vdc

Supply Power Type: DC

Media Compatibility: Hydraulic Oil, Light Oil, Oil

Impedance Output Note: 40 Ω - analog switch and self-resetting fuse

Operating Pressure, Max: 5000 psi

Process Connection Size: 1 1/4 in

Process Connection Type: NPT Female

Process Temperature, Max: 85 °C

Process Temperature, Min: 0 °C

Volumetric Flow Rate, Max: 60 GPM

Volumetric Flow Rate, Min: 0.5 GPM

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C
