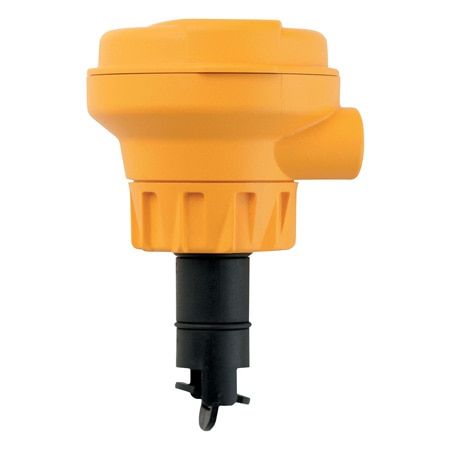

OMEGA FPB152 General Purpose Paddlewheel Flow Meter (± 1 %, 65 °C, 8 in, 12 to 32 Vdc)

Weight: 0 kg

Accuracy: ± 1 %

Approvals: CE

Input Note: 5 µA

Cable Length: 1000 ft

Loop Accuracy: ±32 µA (at 25°C at 24 Vdc)

Output Detail: Signal Averaging: Programmable 0 to 100 seconds; Sensitivity Response: Programmable 0 to 9 scale

Pressure Type: Gauge

Response Time: 100 ms

Velocity, Max: 6 m/s

Velocity, Min: 0.1 m/s

Linearity Note: ±1% of max range at 25°C

Pipe Size, Max: 8 in

Pipe Size, Min: 5 in

Supply Current: 21 mA max

Supply Voltage: 12 to 32 Vdc

Linearity Error: ±1%

Electrical Output: Pulse Divider, SPDT Relay

Enclosure Ratings: IP65, NEMA Type 4X

Materials, Wetted: Black Polypropylene, FKM, FPM, Polypropylene, Titanium

Relative Humidity: 0 to 90% RH, non-condensing

Supply Power Note: 12 Vdc to 32 Vdc nominal (10.8 Vdc min to 35.2 Vdc max) 21 mA max current

Temperature Drift: ±1 µA per °C max

Circuit Protection: Up to 40V for 1 hour

Repeatability Note: ±0.5% of max range at 25°C

Media Compatibility: Liquids

Repeatability Error: ±0.5%

Loop Resistance, Max: 600 Ω @ 24 Vdc 1K Ω @ 32 Vdc

Compatible Connectors: FP-5300 Sensor Installation Fittings

Frequency Input Range: 1 to 1000 Hz

Power Supply Rejection: ±1 µA per V

Operating Pressure, Max: 180 psi

Operating Pressure, Min: 0 psi

Over-Voltage Protection: >40 Vdc over 1 hour

Process Temperature, Max: 65 °C

Process Temperature, Min: 0 °C

Storage Temperature, Max: 75 °C

Storage Temperature, Min: -10 °C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -18 °C

Material Construction Option: Polypropylene
