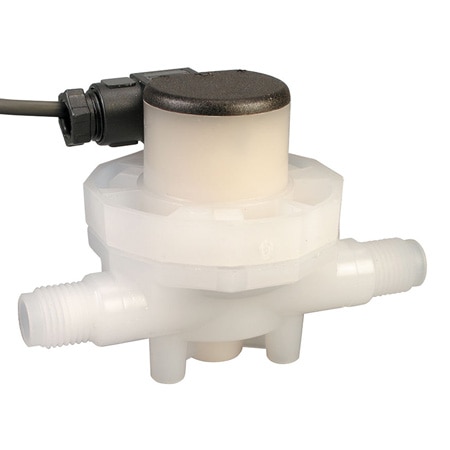

OMEGA FP-5074-PV Mini PVDF Flow Sensor (± 2 %, 1.585 GPM, 1/4 in, NPT Female, 5 to 24 Vdc, 0.612 pulses/ml)

Width: 2.68 in

Height: 2.6 in

Length: 3.74 in

Accuracy: ± 2 %

K-Factor: 0.612 pulses/ml

Approvals: CE

Cable Length: 25 ft

Pressure Type: Gauge

Supply Current: 10 mA max

Supply Voltage: 5 to 24 Vdc

Linearity Error: ±0.25%

Viscosity Range: 0.2 to 20 cSt

Cable Length Note: 7.5 m (25'), resistor required 10 kΩ recommended

Electrical Output: 5 Volt, open collector pulse

Materials, Wetted: FKM, Polypropylene, PTFE

Supply Power Note: 5 to 24 Vdc @ 10 mA maximum, 3-wire

Pressure Drop Note: 10 psid @ 50% flow, 26 psid @ 100% flow

Pressure Drop, Max: 10 psi

Media Compatibility: Oil, Solvents, Water

Repeatability Error: ±0.25%

Operating Pressure, Max: 80 psi

Operating Pressure, Min: 45 psi

Process Connection Size: 1/4 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 1.585 GPM

Volumetric Flow Rate, Min: 0.343 GPM

Operating Temperature, Max: 120 °C

Operating Temperature, Min: -30 °C
