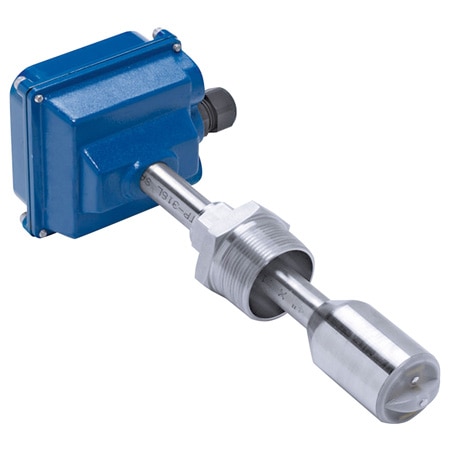

OMEGA FMG906 Adjustable Insertion Electromagnetic Flow Meter (± 1 %, 93 °C, 112804 GPM, 2 in, NPT Male, Aluminum, Bronze, Brass, 48 in, 12 to 24 Vdc)

Weight: 0 lb

Accuracy: ± 1 %

Approvals: CE

Materials: Aluminum, Bronze, Brass

Conductivity: > 20 µS/cm

Accuracy Note: ± 1% of full scale

Output Detail: Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional)

Output Signal: DC Pulse

Velocity, Max: 20 ft/s

Velocity, Min: 0.28 ft/s

Insertion Type: Hot Tap Insertion

Pipe Size, Max: 48 in

Pipe Size, Min: 10 in

Supply Voltage: 12 to 24 Vdc

Materials, Wetted: Brass, Bronze, EPDM, Hastelloy, PVDF

Number of Outputs: 1

Supply Power Note: 12 to 24 Vdc, 250 mA

Supply Power Type: DC

Media Compatibility: Acid Solutions, Conductive Liquids, Saltwater

Empty Pipe Detection: Defaults to zero flow

Operating Pressure, Max: 200 psi

Process Connection Size: 2 in

Process Connection Type: NPT Male

Process Temperature, Max: 93 °C

Process Temperature, Min: 0 °C

Volumetric Flow Rate, Max: 112804 GPM

Volumetric Flow Rate, Min: 1580 GPM

Operating Temperature, Max: 72 °C

Operating Temperature, Min: -17 °C

Material Construction Option: Brass
