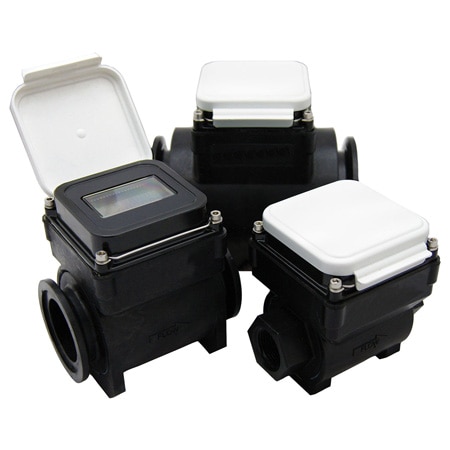

OMEGA FMG803 Battery or DC Powered Plastic Body Electromagnetic Flow Meter (± 1 %, 670 GPM, 3 in, NPT Female, Aluminum, Polyethylene, 3 in)

Weight: 0 lb

Accuracy: ± 1 %

Materials: Aluminum, Polyethylene

Cable Length: 20 ft

Conductivity: > 20 µS/cm

Display Type: LCD

Accuracy Note: ± 1% of reading (between 10% and 100% of maximum flow) ± 3% of reading (between cutoff and 10% of maximum flow)

Output Signal: DC Pulse

Pipe Size, Max: 3 in

Pipe Size, Min: 3 in

Number of Digits: 8

Enclosure Ratings: NEMA Type 4X

Materials, Wetted: 316 Stainless Steel, Glass, Polypropylene

Number of Outputs: 1

Supply Power Note: FMG800: 6 each “AA” alkaline cells (included), replaceable. Estimated life is 1 to 2 years depending on usage, FMG810: 10 to 30 Vdc @ 60 mA maximum (15 mA average), NOTE: Using an unregulated power supply >18 Vdc may damage the meter due to AC line input voltage fluctuation.

Supply Power Type: Battery

Media Compatibility: Acid Solutions, Conductive Liquids, Saltwater

Standard Pulse Rate: None

Empty Pipe Detection: Hardware/software, conductivity-based

Battery Size and Type: Alkaline AA

Operating Pressure, Max: 150 psi

Process Connection Note: 1 NPTF, 2 or 3" flange clamps with 2 or 3 NPTF fitting kit

Process Connection Size: 3 in

Process Connection Type: NPT Female

Storage Temperature, Max: 80 °C

Storage Temperature, Min: -40 °C

Volumetric Flow Rate, Max: 670 GPM

Volumetric Flow Rate, Min: 14 GPM

Operating Temperature, Max: 54 °C

Operating Temperature, Min: -12 °C
