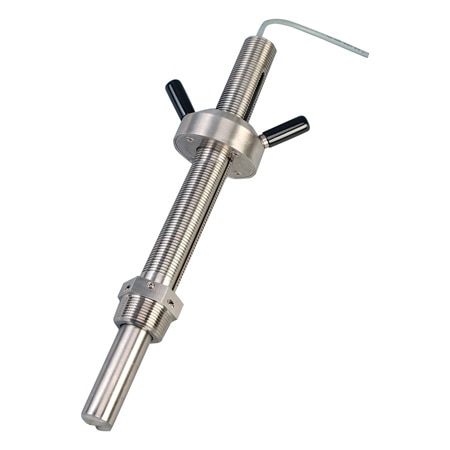

OMEGA FMG-553 Hot-Tap Metal Insertion Electromagnetic Flow Meter (± 2 %, ± 5% with transitional flow, 85 °C, 0 GPM, 1 1/4 in, NPT Female, 48 in, 5 to 24 Vdc)

Weight: 0 lb

Accuracy: ± 2 %, ± 5% with transitional flow

Approvals: CE

Isolation: Low voltage <48 Vac/Vdc from electrodes and auxiliary power

Linearity: ± 1%

Cable Length: 300 m

Conductivity: > 20 µS/cm

Accuracy Note: <± 2% of measured value in reference conditions where the fluid is water at ambient temperature, the appropriate upstream and downstream distances are observed, the sensor is inserted at the correct depth, and there is a fully developed flow profile which is in compliance to ISO 7145-1982 (BS 1042 section 2.2). 32 µA maximum error (at 25°C @ 24 Vdc)

Output Detail: 4 to 20 mA, programmable and reversible, loop

Output Signal: DC Pulse

Repeatability: ± 0.5%

Velocity, Max: 33 ft/s

Velocity, Min: 0.15 ft/s

Linearity Note: ± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s)

Pipe Size, Max: 48 in

Pipe Size, Min: 2 in

Supply Voltage: 5 to 24 Vdc

Loop Resistance: 300 Ω

Current Sink, Max: 50 mA

Enclosure Ratings: IP68, NEMA 6P

Materials, Wetted: 316 Stainless Steel, FKM, PVC, PVDF, Rubber

Number of Outputs: 1

Supply Power Note: frequency (5 to 24 Vdc nominal, 5 to 26.4 Vdc maximum, 15 mA maximum), reverse polarity and short circuit protected pipe size of DN50 to DN1200 (2 to 48")

Supply Power Type: DC

Repeatability Note: ± 0.5% of rdg @ 25°C (77°F)

Media Compatibility: Acid Solutions, Conductive Liquids, Saltwater

Pull Up Voltage, Max: 30 Vdc

Power Supply Rejection: ± 1 µA/V

Temperature Drift Note: ± 1 μA

Operating Pressure, Max: 300 psi

Process Connection Note: Standard 1 1/4" NPT Tee Adaptors, Customer Supplied

Process Connection Size: 1 1/4 in

Process Connection Type: NPT Female

Short-Circuit Protected: < 30 V

Process Temperature, Max: 85 °C

Process Temperature, Min: -15 °C

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -15 °C

Volumetric Flow Rate, Max: 0 GPM

Volumetric Flow Rate, Min: 0 GPM

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -15 °C

Short-Circuit Protected Note: <30 V @ 0 Ω pull-up for 1 hour, reverse polarity protected to -40 V for 1 hour, over-voltage protected to 40 V for 1 hour

Installation Temperature, Max: 40 °C
