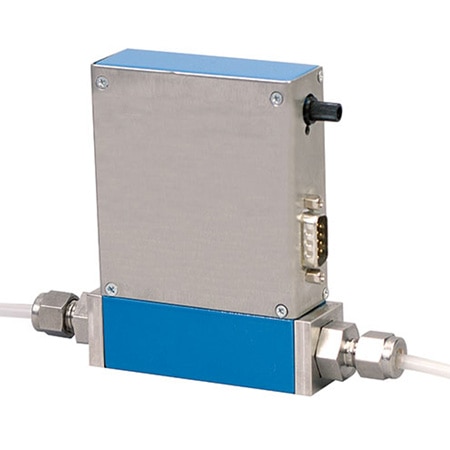

OMEGA FMA3812 Stainless Steel Mas Flow Meters and Controllers Optional Display (20 SLM, ± 1 %, 1/4 in, Compression Fitting)

Width: 1 in

Height: 6 in

Length: 3.29 in

Weight: 1.25 lb

Accuracy: ± 1 %

Calibration: NIST 5-Point Certificate

Display Type: None

Accuracy Note: ± 1% of full scale including linearity

Control Valve: Solenoid Valve NC

Output Detail: Linear 0 to 5 Vdc,1000 Ω min load, 4 to 20 mA,500 Ω loop resistance

Output Signal: Current, Voltage

Repeatability: ± 0.15%

Response Time: 5 sec

Supply Current: 300 mA

Supply Voltage: 24 Vdc

Turndown Ratio: 100:1

Electrical Output: 4 to 20 mA, 0 to 5 Vdc

Materials, Wetted: 17-4 Stainless Steel, 316 Stainless Steel, FKM

Supply Power Note: 24 Vdc @ 300 mA, 115 Vac, 220 Vac with AC adaptor

Media Compatibility: Air, Gases, Nitrogen, Oxygen

Pressure Coefficient: 0.01% FS/psi

Additional Features 1: Power Supply Included

Electrical Connection: Sub-D Male Miniature Connector

Leak Rate Under Vacuum: less than 10^⁻⁶ cc He/s

Required Pressure, Min: 1 inH₂O

Operating Pressure, Max: 500 psi

Operating Pressure, Min: 0 psi

Process Connection Size: 1/4 in

Process Connection Type: Compression Fitting

Temperature Coefficient: 0.05% FS/°C

Volumetric Flow Rate, Max: 20 SLM

Volumetric Flow Rate, Min: 0.1 SCCM

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
