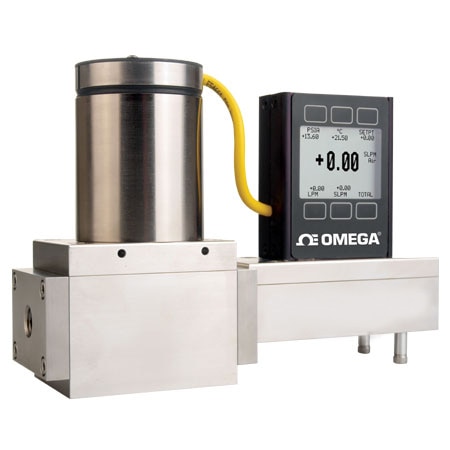

OMEGA FMA-LP2617A Low Pressure Drop Gas Mass Flow Controllers For Clean Gases (100 SCCM, ± 0.8 %, 1/8 in, NPT Female)

Width: 1.1 in

Height: 3.9 in

Accuracy: ± 0.8 %

Span Shift: 0.02% FS/°C/atm

Calibration: NIST Certificate

Display Type: LCD

Accuracy Note: ± (0.8% of reading + 0.2% FS)

Output Signal: Voltage

Repeatability: ± 0.2%

Response Time: 100 ms

Data Interface: RS232

Humidity Range: 0 to 100% RH non-condensing

Supply Current: 250 mA

Supply Voltage: 15 to 30 Vdc

Turndown Ratio: 200:1

Excess Flow Rate: 2.4% FS

Electrical Output: 4 to 20 mA

Materials, Wetted: Aluminum, Brass, FKM, Glass, Nylon, Silicone, Stainless Steel

Pressure Drop Note: 0.06 Pressure Drop at FS psid venting to 1 ATM

Pressure Drop, Max: 0.06 psi

Media Compatibility: Air, Gases, Nitrogen, Oxygen

Input Control Signal: 0 to 5 Vdc

Additional Features 1: Power Supply Included, Volumetric Flow Rate as Standard Output

Electrical Connection: 8-pin mini DIN

Operating Pressure, Max: 50 psi

Operating Pressure, Min: 0 psi

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 100 SCCM

Volumetric Flow Rate, Min: 0.0025 SCCM

Operating Temperature, Max: 50 °C

Operating Temperature, Min: -10 °C
