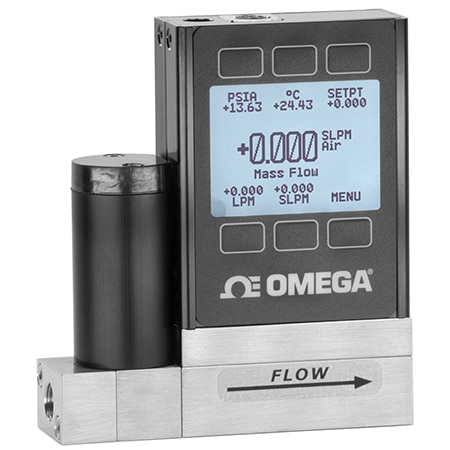

OMEGA FMA-2618A-VOL Mass Flow Controllers with 20+ Gas Select Function (200 SCCM, ± 0.8 %, 1/8 in, NPT Female)

Width: 1.1 in

Height: 3.9 in

Accuracy: ± 0.8 %

Span Shift: 0.02% FS/°C/atm

Calibration: NIST Certificate

Display Type: LCD

Accuracy Note: ± (0.8% of reading + 0.2%FS)

Output Signal: Voltage

Pressure, Min: 5 psi

Repeatability: ± 0.2%

Response Time: 100 ms

Data Interface: RS232

Humidity Range: 0 to 100% RH non-condensing

Supply Current: 250 mA

Supply Voltage: 12 to 30 Vdc

Turndown Ratio: 200:1

Excess Flow Rate: 2.4% FS

Electrical Output: 0 to 5 V

Materials, Wetted: Aluminum, Epoxy, FKM, Glass, Gold, Silicone, Stainless Steel

Media Compatibility: Air, Gases, Nitrogen, Oxygen

Input Control Signal: 0 to 5 Vdc

Additional Features 1: Power Supply Included

Electrical Connection: 8-pin mini DIN

Operating Pressure Note: 145 psig To Use in Volumetric Mode: Near atmosphere, 15 psig recommended maximum. Volumetric flow meters and controllers not certified for accuracy at mass flow rates above the rated flow range of the meter. They are designed for near atmospheric pressure conditions only. The recommended maximum operating pressure is 15 psig

Operating Pressure, Max: 15 psi

Operating Pressure, Min: 0 psi

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 200 SCCM

Volumetric Flow Rate, Min: 0.0025 SCCM

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
