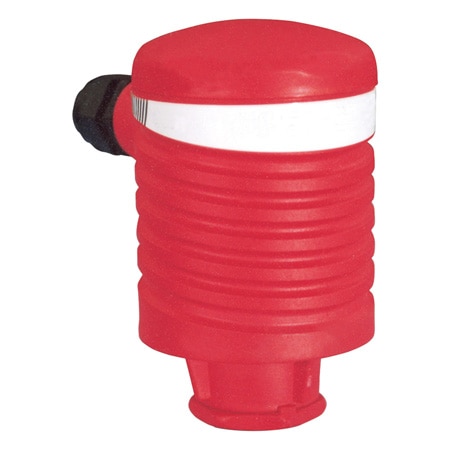

OMEGA FLCN-111 Single Sensor Controller (NPT Female, 3/4 in)

Height: 4.7 in

Diameter: 2.8 in

Approvals: CE

Materials: Polypropylene

Time Delay: 0.15 to 60 sec

Switch Type: SPDT NO/NC

switch-type: SPDT NO/NC

Switch Rating: 10 A

Approvals Note: CE compliance: EN 61326 EMC EN 61010‐1 Safety

Supply Voltage: 120/240 Vac

Enclosure Ratings: IP65, NEMA 4

Power Consumption: 5 W

Supply Power Note: 120/240 Vac, 50/60 Hz

Switch Rating Note: SPDT Relay, Form C, 10A, 120 Vdc or 240 Vac

Media Compatibility: Gases, Liquids

Additional Features 1: 300° swivel base

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Process Connection Size: 3/4 in

Process Connection Type: NPT Female

Sensor/Transmitter Power: 13.5 Vdc @100 mA

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -40 °C
