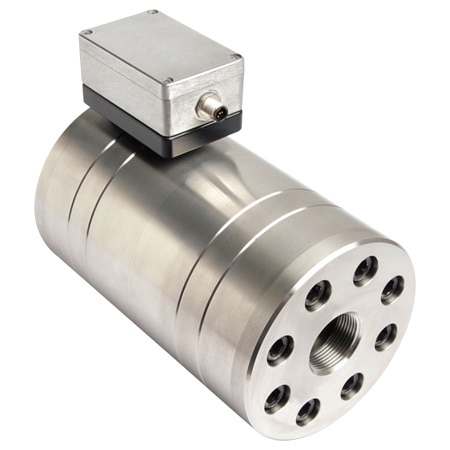

OMEGA FHG-1114 Screw Gear Flow Meter for High Viscosity Liquids (1 1/4 in, Flange, 0.26 GPM, Amplified Square Wave)

Display: No Display

Accuracy: ± 0.5 %

Output Note: Quadrature signals (A, B with 90° phase shift), Directional Output: Positive high (24V), negative low (0.8 to 1V), Error Output: Active high (24V), inactive low (0.8 to 1V), Signal Voltage Output: Vss = 9 to 27 Vdc (channel 1, channel 2, error/direction), Signal Output: Iout = 300 mA maximum at 24 Vdc (channel 1, channel 2)

Bearing Type: Ball

Accuracy Note: ±0.5% of measured value with viscosity of > 21 cSt

Output Detail: Iout = 300 mA maximum at 24 Vdc (channel 1, channel 2)

Repeatability: ±0.05%

Supply Voltage: 10 to 28 Vdc

Viscosity Range: 1000000 cSt

Housing Material: Cast Iron

Output Frequency: 0 to 100 kHz

Electrical Output: Amplified Square Wave

Enclosure Ratings: IP65

Power Consumption: 65 mA at 24 Vdc

Supply Power Note: u = 10 to 28 Vdc; reverse pole protection

Supply Power Type: DC

Media Compatibility: High Viscosity Liquids

Operating Pressure, Max: 6000 psi

Process Connection Size: 1 1/4 in

Process Connection Type: Flange

Volumetric Flow Rate, Max: 132 GPM

Volumetric Flow Rate, Min: 0.26 GPM

Operating Temperature, Max: 120 °C

Operating Temperature, Min: -30 °C
