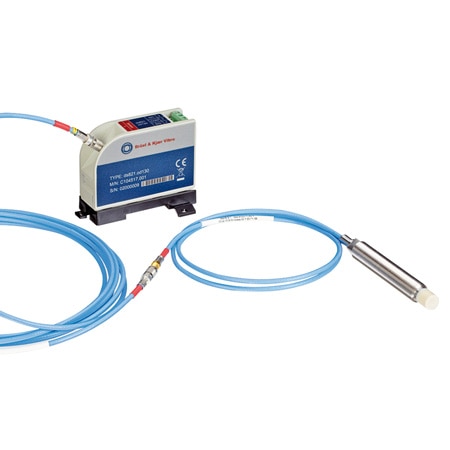

OMEGA ds821.mc301/1/70/045/015/05/10 B&K Vibro Non-Contacting Displacement Sensor System (Displacement Measurement, UNF, 3/8 in)

Accuracy: ± 10 %

Altitude: Up to 2000m (6561 ft)

Cable Type: Coaxial

Sensitivity: -4 mV/μm

Color Options: Red

Housing Length: 1.77 in

Supply Voltage: -24 Vdc

Transducer Type: Displacement Measurement

Housing Diameter: 0.433 in

Impedance Output: 50 Ω

Measurement Note: Eddy current Mesurment 4 mm (approx. 0.5 … 4.5 mm distance from the object to be measured corresponding to an output signal of approx. -2 VDC … -18 VDC )

Measurement, Max: 4 mm

Measurement, Min: 0 mm

Electrical Output: 0 to Ub + 2 V

Enclosure Ratings: IP68

Power Consumption: 12 mA

Supply Power Note: -24 VDC (-18 VDC … -28 VDC)

Frequency Response: DC to 10 kHz (-3 dB damping of the output signal)

Sensor Body Length: 45 mm

Unthreaded Section: 15 mm

Zero/Balance Error: ±100 μm

Electrical Connection: Coaxial connector (SAA), push-pull self-latching

Process Connection Size: 3/8 in

Process Connection Type: UNF

Nominal ECDS System Length: 5 m

Operating Temperature, Max: 180 °C

Operating Temperature, Min: -55 °C

Length of Sensor with Integrated Cable: 1 m
