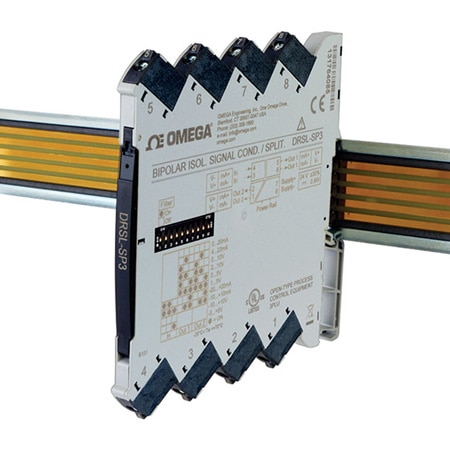

OMEGA DRSL-SP3 DIN Rail Isolated Repeater/Splitter for Bipolar Process Signals (Voltage, Current, ±10Vdc, ± 20 mA)

MTBF: 187 yrs

Width: 6.1 mm

Height: 113 mm

Length: 115 mm

Weight: 70 g

Accuracy: ± 0.05 %

Mounting: DIN Rail 35 mm Standard, EN 60715

Approvals: CE, UL, RoHS

Bandwidth: 100 Hz or 10 Hz (selectable via DIP-switch)

Isolation: Isolation: Input/output 1/output 2/supply;Isolation Voltage (Test): 2.5 kVac;Isolation Voltage (Working):300 Vac

Span, Max: Corresponds to the presently selected DIP switch output range

Stability: Load Stability: ≤0.002% of span/100 Ω

Input Type: Voltage, Current

Wire Gauge: 26 to 12 AWG

EMC Standard: NAMUR NE 21

Installation: Pollution degree 2 and measurement/overvoltage category II

Output Value: Splitter

Voltage Loss: <1 V

Output Detail: Current Output Programmable Signal Ranges:0 to 20 mA, 4 to 20 mA, ±10 mA,±20 mA Functional Range: 0 to 23 mA Current Limit: ≤28 mA Voltage Output: Programmable Signal Ranges:0 to 10V, 2 to 10V, 0 to 5V, 1 to 5V Functional Range: 0 to 11.5V

Output Signal: Current, Voltage

Response Time: < 7 ms

Supply Voltage: 16.8 to 31.2 Vdc

Input Range Note: Current Input:;Current Input: -23 to 23 mA; Input Voltage Drop: <1V @ 23 mA;Voltage Input:; Functional Range: -11.5 to 11.5V; Input Resistance: ≥1 MΩ

Number of Inputs: 2

EMC Immunity Note: Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span

Electrical Output: 0 to 23 mA

Enclosure Ratings: IP20

Noise Calibration: >60 dB

Power Consumption: 0.8 W, Internal - max 0.65 W

Relative Humidity: 0 to 95% RH (non-condensing)

Supply Power Note: 16.8 to 31.2 Vdc via power rail or connectors

Supply Power Type: DC

Response Time Note: Response Time (0 to 90%, 100 to 10%): <7 ms or <44 ms

Voltage Output Range: 0 to 10 Vdc

Additional Features 1: Bipolar

Screw Terminal Torque: 0.5 Nm

Temperature Coefficient: <±0.01% of span/°C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Current Measurement Range: ± 20 mA

Voltage Measurement Range: ±10Vdc

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -25 °C

Calibration Temperature, Max: 28 °C

Calibration Temperature, Min: 20 °C
