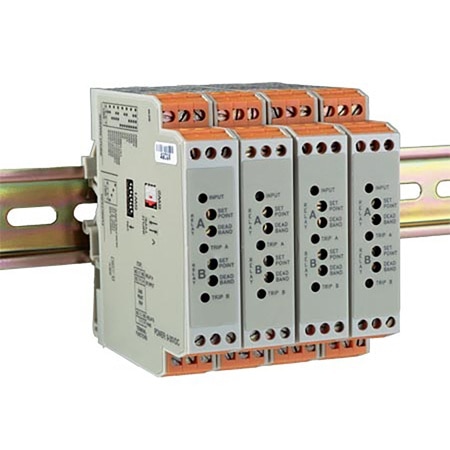

OMEGA DRG-SC-RTD DIN Rail Configurable Conditioners with Model Specific Input Type (RTD, RTD: -200 to 600°C)

Width: 17.7 mm

Height: 90 mm

Length: 1102 mm

Accuracy: ± 0.1 %

Mounting: DIN Rail 32 mm Standard or 35 mm

Approvals: CE

Isolation: 1800 Vdc

Standards: IEC 801-2, Level 2

Case Style: B

Compliance: 0 to 1 mA: 7.5V, max (7.5 kΩ), 4 to 20 mA: 12 V, max (600 Ω)

Input Type: RTD

Accuracy Note: Accuracy (including linearity, hysteresis): ±0.1% typical, ±0.2% max. the maximum input temperature range @ 25°C, 0 Ω lead resistance.

Output Signal: Current, Voltage

Response Time: 200 msec

Supply Voltage: 9 to 30 Vdc

Input Range Note: α = 0.00385Ω/Ω/°C

Number of Inputs: 1

Wire Code Option: 3- Wire

Electrical Output: 0 to 1 mA, 0 to 20 mA, 4 to 20 mA

Relative Humidity: Operating: 15 to 95% (@45°C), Soak: 90% for 24 hours (@65°C)

Supply Power Note: 9-30 Vdc, 1.5 W typical, 2.5 W max

Supply Power Type: DC

Excitation Current: < 2 mA for Pt100, Pt500, Pt1000; <5 mA for Cu100; <10 mA for Cu10, Cu25

Response Time Note: (10 to 90%): 500 mSec. Typical

Lead Resistance, Max: <1% of the maximum input temperature span.

Voltage Output Range: 0 to 5 V, 0 to 10 V

Sensor/Transmitter Power: 40% of base sensor resistance or 100Ω (whichever is less), max. per lead

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -25 °C

Operating Temperature, Max: 55 °C

Operating Temperature, Min: 0 °C

Temperature Measurement Range: RTD: -200 to 600°C
