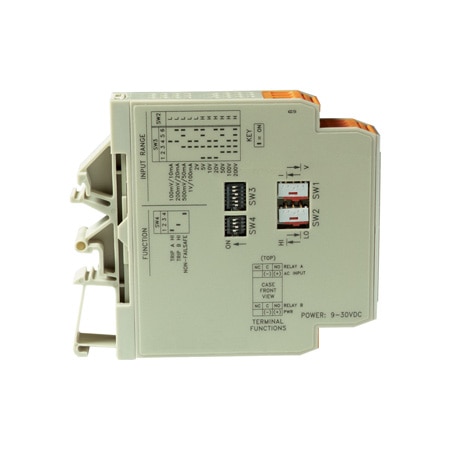

OMEGA DRG-AR-RTD DIN Rail Field Configurable Alarm Limit Modules (RTD, RTD: -200 to 850°C)

Width: 17.7 mm

Height: 90 mm

Length: 1102 mm

Deadband: Relay status will change when proper setpoint condition exists for 100 msec

Mounting: DIN Rail 32 mm Standard or 35 mm

Approvals: CE

Isolation: 1800 Vdc

Materials: Silver-Cadium Oxide

Standards: IEC 801-2, Level 2

Input Type: RTD

Wire Gauge: 22 to 12 AWG

Overcurrent: Current: 200 mAac

Output Value: Process

Relay Output: 120 Vac @ 5A, 240 Vac @ 2A, 28 Vdc @ 5A

Output Detail: Relay Contacts 2 SPDT (2 form C) Relays 1 Relay per setpoint Current Rating: 120 Vac: 5A, 240 Vac: 2A, 28 Vdc: 5A

Output Signal: Relay

Response Time: <250 msec

Supply Voltage: 9 to 30 Vdc

Input Range Note: α= 0.00385

Number of Inputs: 1

Wire Code Option: 3- Wire

Relative Humidity: Operating: 15 to 95% (@45°C), Soak: 90% for 24 hours (@65°C)

Supply Power Note: 9 to 30 Vdc, 1.5 W typical, 2.5 W max

Supply Power Type: DC

Lead Resistance, Max: <1% of the maximum input temperature span.

Electrical Connection: Screw Terminal

Setpoint Repeatability: 0.0002

Sensor/Transmitter Power: 40% of base sensor resistance or 100Ω (whichever is less), max. per lead

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -25 °C

Operating Temperature, Max: 55 °C

Operating Temperature, Min: 0 °C

Temperature Measurement Range: RTD: -200 to 850°C

Limit Differentials (Deadbands): 1.0 to 5% of span
