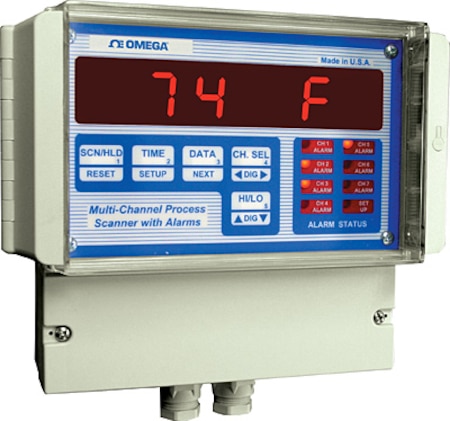

OMEGA DPS3307TC-3 Process Scanners Wall-Mount 4 and 7-Zone, IP65 Enclosure (J, K, T, E, R, S, B, N, Wall Mount, 120 Vac)

Width: 192 mm

Height: 160 mm

Length: 103 mm

Weight: 1.4 kg

Scan Rate: Fixed, 2 channels/sec

Input Type: Thermocouple

Resolution: 1 °C or °F

Calibration: Calibration: NIST traceable (temperature),Resolution: 1°C or F,Thermistor: 0.1°C/0.2°F,Process: 9999, 999.9, 99.99, 9.999,Selectable Temperature Units: Celsius or Fahrenheit

Form factor: Wall Mount

Display Size: 20 mm (.78 in)

Display Type: 7 Digit LED

A/D Conversion: 20,000 count A/D converter; dual-slope integrating converter

Control Output: Open-Collector Output

Recording time: Displayed in hours, minutes and seconds,Format: HH.MM.SS

Supply Voltage: 120 Vac

Conversion Rate: 7 conversions per second

Input Type Note: J, K, T, E, R, S, B, Pt100 RTD and thermistor [2252 Ω @ 25°C (77°F)], 4 to 20 mA, 0 to 100 mV, 0 to 10 Vdc

Measuring Range: Thermocouple: Type J: -200 to 1190°C Type K: -170 to 1365°C Type T: -155 to 400°C Type E: -185 to 915°C Current: 1 to 30,000 counts Voltage: 1 to 30,000 counts

Number of Inputs: 1

Number of Relays: 7

Display Type Note: Red 7-segment LED display, 7 digits, 20 mm (0.8") high; negative polarity indication Over-Range Indication: “HELP” Display Test: Briefly indicates 8.8.8.8.8.8.8 on power-up

Enclosure Ratings: IP65

Supply Power Note: 120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 8 to 15 Vdc @ 900 mA

Thermocouple Type: J, K, T, E, R, S, B, N

Enclosure Material: Polycarbonate

Number of Channels: 7

Cold Junction Error: 1°C (10 to 40°C)

Channel Display Time: Programmable from 1 to 999 seconds

Additional Features 1: dedicated_input

Temperature Sensor Type: N/A

Material Construction Option: N/A

Open Thermocouple Indication: "HELP" displayed

Retransmission/Analog Output: 7 Relays

Retransmission/Analog Output Note: SPST, 1 A @ 28 Vdc or 0.5 A @ 120 Vac
