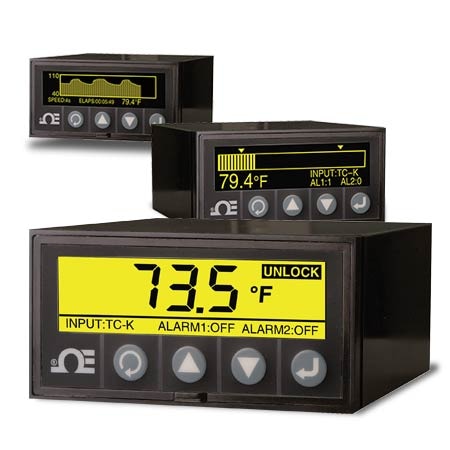

OMEGA DPI1701-USB-R Graphic Display Panel Meter and Data Logger for Temperature/Process Measurement (Monochrome Backlit LED Display, 90 to 240 Vac)

Clock: Backed-up for 2 weeks when there is no main power

Width: 96 mm

Height: 48 mm

Keypad: 4 tactile feedback keys

Weight: 295 g

Display: Standard Digital, Large Digital, Horizontal bar graph, Line Graph Charting

Accuracy: ± 0.5 °C

Deadband: 0 to 100%

RTD Type: 100 Ω Pt sensor, 2- or 3-wire; α= 0.00385

Software: Runs on Windows® 7, 8*, and 10

Backlight: true

Isolation: Power to Input/Output: 3000 Vac for 1 minute Power to Relays: 2300 Vac for 1 minute

Form factor: 1/8 DIN

Display Type: Monochrome Backlit LED Display

Memory Modes: Alarm Initiated, Continuous (first-in:first-out), Delayed Start, Manual Start, stop when full

Output Detail: SPDT, 250 Vac or 30 Vdc @ 3A

Sampling Rate: 4 Hz (4 updates/second)

Wireless Band: 2.4 GHz

Data Interface: USB

Data Retention: Up to 85,000 data points with time stamping

Supply Voltage: 90 to 240 Vac

supply-voltage: 90 to 240 Vac

Logging Interval: Adjustable from 1 to 60 sec

Cutout Dimensions: 45 x 92 mm

Display Type Note: Monochrome Backlit, 240 x 64 dots

Enclosure Ratings: NEMA Type 1

Relative Humidity: 90% RH non-condensing

Supply Power Note: 90 to 240 Vac ±10%, 50 to 400 Hz

Data Interface Note: Isolated USB or RS232 (9600 baud rate, 8-bit data, no parity, 1 stop bit)

Additional Features 1: Enable/disable, high/low, latch/unlatch , Line Graph Time Speed: Adjustable from 1 to 60 sec

Sensor Break Detection: Open Thermocouple/RTD Detection - Up scale

Sensor/Transmitter Power: 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA isolated

Current Measurement Range: 0 to 20 mA

Voltage Measurement Range: 0 to 10 Vdc

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Temperature Measurement Range: Type J: -100 to 760°C (-148 to 1400°F) ,Type K: -100 to 1260°C (-148 to 2300°F) ,Type E: -200 to 849°C (-328 to 1560°F) ,Type T: -200 to 400°C (-328 to 752°F) ,Type R & S: 100 to 1760°C (212 to 3200°F) ,RTD: -200 to 850°C

Thermocouple Lead Resistance, Max: 100 Ω
