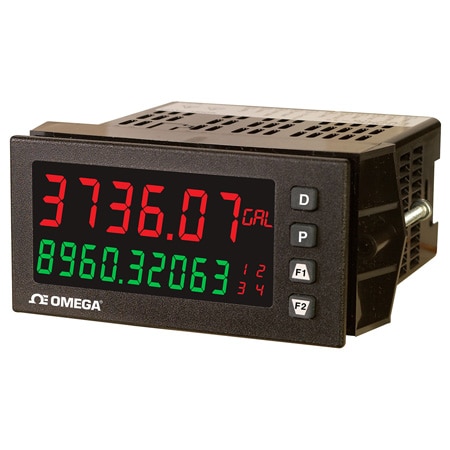

OMEGA DP63100-S-RL 1/8 DIN Universal Process & Strain Gage Panel Meter with USB (1/8 DIN, LCD)

Width: 96.52 mm

Height: 49.53 mm

Keypad: 3 programmable function keys, 5 keys total

Length: 105 mm

Memory: Nonvolatile FRAM memory retains all programmable parameters and display values

Weight: 226.8 g

Altitude: Up to 2000m (6561 ft)

Frequency: 50/60 Hz

Isolation: 2300 Vrms for 1 min to all inputs and outputs.

Totalizer: Time Base: sec,min,hr,day;Batch: Can accumulate (gate) input display from a user input;Time Accuracy: 0.01% typ.;Decimal Point: 0 to 0.0000;Scale Factor: 0.001 to 65.00;Low Signal Cut-Out: -199,999 to 999,999;Total: 6 digits on line 1; 9 digits on line 2;

Input Type: Quarter-bridge, Half-bridge, Full-bridge

Form factor: 1/8 DIN

Display Size: 18 mm (0.71 in)

Display Type: LCD

Reading Rate: 5 to 160/sec

Accuracy Note: Thermocouple Accuracy:;Type T: 2.1°C;Type E: 2.4°C;Type J: 2.3°C;Type K: 3.4°C;Type R: 4.0°C;Type S: 4.0°C;Type B: 5.7°C and 4.4°C;Type N: 3.1°C;Type C (W5/W26): 6.1°C ;RTD Accuracy:;100 Ω Pt alpha = 0.00385: 1.6°C;100 Ω Pt alpha = 0.003919: 1.6°C;120 Ω Nickel alpha = 0.00672: 0.5°C;10 Ω Copper alpha = 0.00427: 0.9°C;Current Inputs Accuracy:;±250 µADC: 0.12% of reading +0.04 µA, ;±2 mADC:0.12% of reading +0.4 µA, ;±20 mADC: 0.12% of reading +4 µA, ;±200 mADC: 0.15% of reading +40 µA, ;±2 ADC: 0.7% of reading +0.4 mA;Voltage Inputs Accuracy:;±250 mVdc: 0.12% of reading +40 μV,;±2.0 Vdc: 0.12% of reading +0.4 mV, ;±10 Vdc: 0.12% of reading +4 mV ;±25 Vdc: 0.12% of reading +4 mV, ;±100 Vdc: 0.12% of reading +40 mV, ;±200 Vdc: 0.12% of reading +40 mV;Resistance Inputs Accuracy:;100 Ω: 0.2% of reading +0.04 Ω, ;1000 Ω: 0.2% of reading +0.4 Ω, ;10 Ω: 0.2% of reading +1.5 Ω

Digital Input: Two Programmable User Inputs

Display Range: -199999 to 999999

Input Voltage: ± 24 mVDC, ± 240 mVDC

A/D Conversion: 24 bit resolution

Data Interface: USB

RTD Input Note: Type: 3 or 4 wire, 2 wire can be compensated for lead wire resistance Excitation Current: 100 Ω Range: 136.5 µA ±10% 10 Ω Range: 2.05 mA ±10% Lead Resistance: 100 Ω Range: 10 Ω/lead maximum 10 Ω Range: 3 Ω/lead maximum Max Continuous Overload: 30V Excitation Power: Jumper selectable Transmitter Power: ±18 Vdc @ 50 mA Reference Voltage: ±2 Vdc, ±2%

Supply Voltage: 50 to 250 Vac ,21.6 to 250 Vdc

Measuring Range: Thermocouple: Type T: -200 to 400 °C;Type E: -200 to 750 °C;Type J: -200 to 760 °C;Type K: -200 to 1250 °C;Type R: 0 to 1768 °C;Type S: 0 to 1768 °C;Type B: 150 to 300 °C and 300 to 1820 °C;Type N: -200 to 1300 °C;Type C (W5/W26): 0 to 2315 °C ;RTD: 100 Ω Pt alpha = 0.00385: -200 to 850 °C;100 Ω Pt alpha = 0.003919: -200 to 850 °C ;120 Ω Nickel alpha = 0.00672: -80 to 259 °C;10 Ω Copper alpha = 0.00427: -100 to 260 °C;Current Inputs: ± 250 µADC, ± 2 mADC, ± 20 mADC, ± 200 mADC, ± 2 ADC;Voltage Inputs: ± 250 mVdc, ± 2.0 Vdc, ± 10 Vdc, ± 25 Vdc, ± 100 Vdc, ± 200 Vdc;Resistance Inputs: 100 Ω, 1000 Ω, 10 Ω; Common Mode Range: 0 to +5 VDC

RTD Input Range: 3 or 4 wire, 2 wire can be compensated for lead wire resistance

Thermal Effects: -199,999 to 999,999

Number of Inputs: 1

Cutout Dimensions: 45 x 92 mm

Decimal Selection: 4-Position

Display Type Note: Display: Negative image LCD Top Line: 6 digit, 18 mm (0.71"), with tri-color backlight (red, green or orange) Display Range: -199999 to 999999; Bottom Line: 9 digit, 8.9 mm (0.35"), with green backlight Display Range: -199,999,999 to 999,999,999

Enclosure Ratings: IP65, NEMA Type 4X

Relative Humidity: 0 to 85%

Supply Power Note: AC Input: 50 to 250 Vac, 50/60 Hz, 14 VA DC Input: 21.6 to 250 Vdc, 8 W

Linearization Points: Selectable from 2 to 16

Electrical Connection: Screw Terminal

Storage Temperature, Max: 60 °C

Storage Temperature, Min: -40 °C

Thermocouple Input Range: Readout: Scale: ºF or ºC; Input Impedance: 20 MΩ; Lead Resistance Effect: 0.03 µV/Ω;Max Continuous Overvoltage: 30V

Operating Temperature Note: 0 to 50°C (32 to 122°F) 0 to 45°C (32 to 113°F) with all three plug-in cards installed

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Thermocouple Lead Resistance, Max: 100 Ω

Datasheet
