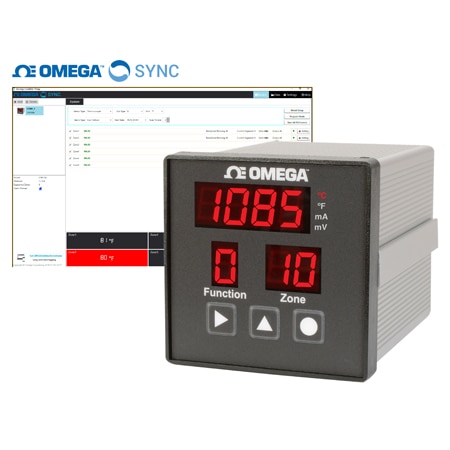

OMEGA DP606A-DC Universal 6/12 Channel 1/4 DIN Panel Meter, Universal Input (J, K, T, E, R, S, B, C, N, 1/4 DIN, 9 to 36 Vdc / 60 Hz)

Width: 95 mm

Height: 95 mm

Weight: 725 g

Diameter: 135 mm

Isolation: Power to Input: 1.5k Vdc; Power to Alarm Relay: 2.3k Vac; Power to Relay: 2.3k Vac; Input to Serial: 500 Vac

Scan Rate: 400 ms

Input Type: Thermocouple, RTD, mA, Voltage

Resolution: 1°, 1 mV, 0.01 mA

Alarm Relay: 36 Vdc @ 3 A

Form factor: 1/4 DIN

Panel Depth: 140 mm

Display Size: 21 mm (.82 in)

Display Type: 4 Digit LED

Sampling Rate: 2.5 Hz (2.5 updates/second)

A/D Conversion: 24-bit Sigma Delta

Data Interface: RS232, RS485

Supply Voltage: 9 to 36 Vdc / 60 Hz

Input Type Note: Input Types: TC: J, K, T, E, R, S, B, C, N RTD: 2 or 3 wire PT100 0.00385 CU10 0.00427 NI120 0.00672 1RTD 3 Wire 6 channels for all models

Measuring Range: Process Voltage: 0 to 1000 mV Process Current: 0 to 24.00 mA Type J: -150 to 1200°C Type K: -150 to 1372°C Type T: -150 to 400°C Type E: -150 to 1000°C Type R: -50 to 1788°C Type S: -50 to 1768°C Type B: 150 to 1820°C Type C: 0 to 2320°C Type N: -150 to 1300°C Pt RTD: 200 to 850°C Cu RTD: -200 to 260°C Ni RTD: -80 to 260°C

Number of Inputs: 6

Number of Relays: 2

Cutout Dimensions: 92 x 92 mm

Display Type Note: 4-digit, 7-segment LED; red, 21 mm (0.83), 1 to 40s

Power Consumption: 3 W

Supply Power Note: Input Power: AC Models: 120/240 Vac; 50/60 Hz DC Models: 9 to 36 Vdc 3 watts maximum

Supply Power Type: DC

Thermocouple Type: J, K, T, E, R, S, B, C, N

Data Interface Note: RS232 and RS485 (User Selectable) Up to 115.2k baud Modbus Protocol (RTU)

Input Control Signal: 4 to 20 mA, 0 to 1 V

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C

Material Construction Option: N/A

Retransmission/Analog Output: 2 Relays

Datasheet
