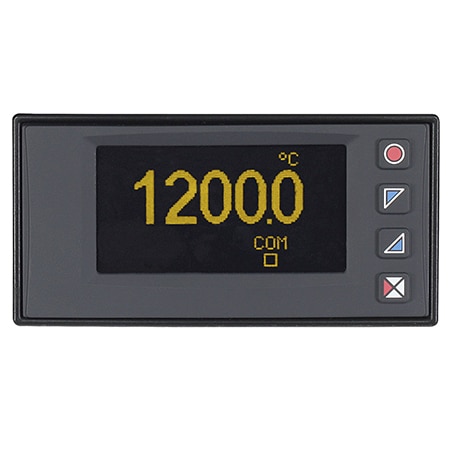

OMEGA DP400TP High Speed Temperature and Process Meter, NFC Enabled (Themocouple, RTD, Current, Voltage, J, K, T, E, R, S, B, N, Graphical OLED, 24 to 230 Vac/Vdc)

Weight: 165 g

Input Type: Themocouple, RTD, Current, Voltage

Form factor: 1/8 DIN

Display Type: Graphical OLED

Output Detail: 2A - 250VAC (resistive charge)

Sampling Rate: 4.12 Hz to 242 Hz (4.12 to 242 updates/second)

Control Output: 2 SPDT Relay

Data Interface: RS485

Supply Voltage: 24 to 230 Vac/Vdc

Input Type Note: 1 Analogue: Res.16 bit, Selecting for T/C type K, S, R, J, T, E, N, B (automatic compensation of the cold junction 0 ~ 50 °C, ± 0,2% F.S. ± 1 Digit F.S.), thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (ß 3435K), process signals 0-10 V(54000 points), 0/4-20mA(40000 points), 0-60 mV (16000 points), Potentiometer 6 KO, 150 KO (50000 points) Customizable linear input (max 16 steps) 2 Digital: PNP inputs programmable for Run / Hold / Tare-Zero / Alarms reset/ Peaks reset/ Totalizer reset / Activate-Reset Sum / Parameters-Setpoint Lock

Number of Inputs: 1

Cutout Dimensions: 48 x 96 mm

Enclosure Ratings: IP65, NEMA Type 4

Power Consumption: 8 VA

Relative Humidity: 35 ~ 95 RH% (non condensing)

Supply Power Note: 24 ~ 230VAC/DC ±10% 50/60 Hz (galvanic isolation 2500V)

Supply Power Type: AC/DC

Thermocouple Type: J, K, T, E, R, S, B, N

Enclosure Material: Polycarbonate V0

Data Interface Note: RS485 Modbus RTU - Slave (1200 ~ 115200 Baud) galvanically isolated from Power supply/Inputs/Outputs

Quick Set-up Options: Software LABSOFTVIEW and/or Memorycard

Additional Features 1: Trend visualization

Electrical Connection: Screw Terminal

Output Configurations: 2 Analog Current

Sensor/Transmitter Power: 24 VDC - 30mA for external sensors supply (loop-powered)

Operating Temperature, Max: 45 °C

Operating Temperature, Min: 0 °C

Output Configurations Note: 1 output 0 ~ 10V (60000 points) - 1 output 0/4 ~ 20mA (60000 points) Analogue Retransmission: Process values / Setpoints
