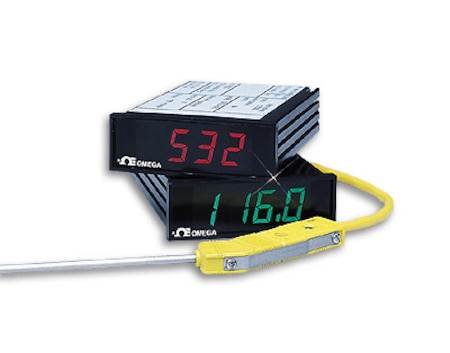

OMEGA DP116-MC1 3 1/2 Digit Mini-size Temperature Panel Meter (RTD, 3.5 Digit Single LED, 115 Vac)

Width: 72 mm

Height: 24 mm

Length: 120 mm

Weight: 200 g

Accuracy: ± 0.3 °C (± 0.5 °F) + 0.2 % rdg

RTD Type: 100 Ω Pt Sensor

Input Type: RTD

Resolution: 1.0°C

Form factor: 3/64 DIN

Display Size: 14.2 mm (0.56 in)

Display Type: 3.5 Digit Single LED

Reading Rate: 2.5 samples/sec

Analog Output: 1 mV/deg

Step Response: 1 sec

Supply Voltage: 115 Vac

Cutout Dimensions: 22 x 68 mm

Display Type Note: 3 1 ⁄2 digit red LED, 14.2 mm (0.56") digits (optional green LED—no charge)

Enclosure Ratings: IP65, NEMA Type 4

Power Consumption: 2 W

Supply Power Note: 115 Vac, ±15%, 50/60 Hz (optional 230 Vac or non-isolated 9/26 Vdc—no charge)

Thermocouple Type: N/A

Additional Features 1: None

Operating Temperature, Max: 60 °C

Operating Temperature, Min: 0 °C
