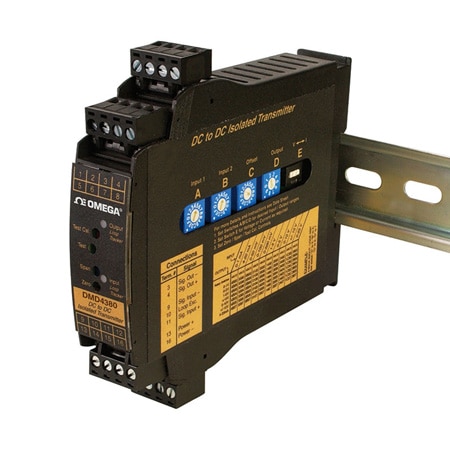

OMEGA DMD4380 DIN Rail Conditioners Convert mA or V Inputs to mA or Voltage (Voltage, Current, 0 to 50 Vdc)

CMRR: 120 db minimum

Width: 22.5 mm

Height: 117 mm

Length: 122 mm

Offset: Zero Offset (Tare): ± 100% of span in 15 % increments

Weight: 150 g

Mounting: DIN Rail 35 mm Standard

Isolation: 1200 Vrms minimum, 3-way isolation, power to input, power to output and input to output

Linearity: Output Linearity: ±0.1% of span

Input Type: Voltage, Current

Wire Gauge: 14 AWG

Output Value: Process

Output Detail: Output Ranges: Switch Selectable, Field Rangeable Voltage (10 mA max): 0-1 to 0-10 Vdc Bipolar Voltage (10 mA max): ±5 to ±10 Vdc Current: 0-2 mA to 0-25 mA Compliance, Drive @ 20 mA: 20V, 1000 Ω drive Output Offset: ±100% of span in 15% increments Function Test Button: Sets output to test level when pressed. Adjustable 0 to 100% of span via potentiometer. Factory default is approx 50% of span Output Zero and Span (Fine Adjustment): Multi-turn potentiometers to compensate for load and lead variations, ±15% of span adjustment range typical

Output Ripple: <10 mV rms

Output Signal: Current, Voltage

Response Time: 70 ms typical

Supply Voltage: 80 to 265 Vac, 85 to 300 Vdc

Impedance Input: Voltage: 1 MΩ minimum, Current: 50 Ω typical

Input Range Note: Input Ranges: Field selectable ranges via switch settings;Voltage: 0-10 mVdc to 0-50 Vdc;Bipolar Voltage: ±50 mVdc to ±10 Vdc;Current: 0-200 uAdc to 0-50 mAdc;Voltage Burden : 1 Vdc at 20 mA

Number of Inputs: 2

Electrical Output: 0 to 10 Vdc

Enclosure Ratings: IP40

Supply Power Note: 80 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 2 W maximum; Input Loop Power Supply: 15 Vdc ±10%, regulated, 25 mAdc; max ripple, less than 10 mV RMS may be selectively wired for sinking or sourcing Output Loop Power Supply: 20 Vdc nominal, regulated, 25 mAdc; max ripple, less than 10 mV RMS; may be selectively wired for sinking or sourcing

Supply Power Type: AC/DC

Voltage Output Range: 0 to 10 Vdc

Additional Features 1: Standard Voltage isolated

Electrical Connection: Screw Terminal

Temperature Stability: Better than ±0.02% of span per °C

Voltage Measurement Range: 0 to 50 Vdc

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -10 °C
