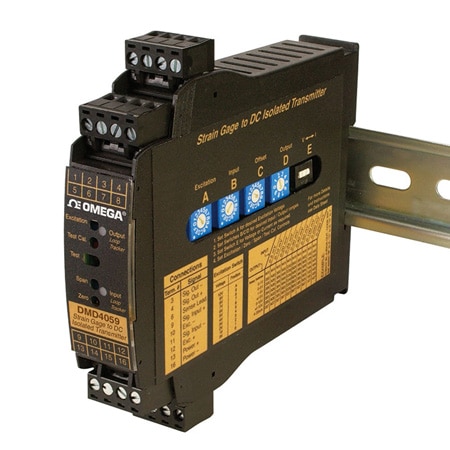

OMEGA DMD4059 DIN Rail Conditioners Convert Bridge Inputs to mA or Voltage (Voltage, 0 to 400 mV)

CMRR: 100 db min

Width: 22.5 mm

Height: 117 mm

Length: 122 mm

Offset: Zero Offset (Tare): ± 100% of span in 15 % increments

Weight: 159 g

Mounting: DIN Rail 35 mm Standard

Isolation: 1200 Vrms minimum, 3-way isolation, power to input, power to output and input to output

Linearity: Output Linearity, Ripple and Noise: Better than ±0.1% of span, <10 mV rms ripple and noise

Stability: ±0.01% per °C, Thermal: Better than ±0.02% of span per °C

Input Type: Voltage

Wire Gauge: 14 AWG

Adjustments: ±5% Via Multi-Turn Potentiometer

Output Value: Process

Output Detail: Output Ranges: Voltage (10 mA max): 0-1 to 0-10 Vdc Bipolar Voltage (10 mA max): ±5 or ±10 Vdc Current: 0-2 mA to 0-25 mA Compliance, Drive @ 20 mA: 20V, 1000 Ω drive;current output can be selectively wired for sink or source Function Test Button: Sets output to test level when pressed. Adjustable 0 to 100% of span via potentiometer. Factory default is approx 50% of span Maximum Output: 10 Vdc @ 120 mA

Output Ripple: Better than ±0.1% of span, <10 mV rms ripple and noise

Output Signal: Current, Voltage

Response Time: 70 ms typical

Supply Voltage: 80 to 265 Vac, 85 to 300 Vdc

Impedance Input: 200 kΩ typical

Input Range Note: Input Range: 100 to 10,000 Ω bridges @ 10 Vdc, drives up to four 350 Ω bridges @ 10 Vdc;Minimum: 0 to 5 mV range, 0.5 mV/V sensitivity;Maximum: 0 to 400 mV range, 40 mV/V sensitivity

Number of Inputs: 1

Electrical Output: 0 to 25 mA

Enclosure Ratings: IP40

Power Consumption: 2 to 5 W

Supply Power Note: 80 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 2 W maximum

Supply Power Type: AC/DC

Excitation Voltage: Selectable 0 to 10 Vdc

Resistance Accuracy: Better than ±0.01% per 1 Ω change in leadwire resistance

Voltage Output Range: 0 to 10 Vdc

Additional Features 1: Standard Voltage isolated

Electrical Connection: Screw Terminal

Temperature Stability: ±0.01% per/°C; Better than ±0.02% of span per °C

Sensor/Transmitter Power: Up to 4- 350 Ω bridges @ 10 Vdc

Voltage Measurement Range: 0 to 400 mV

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -10 °C
