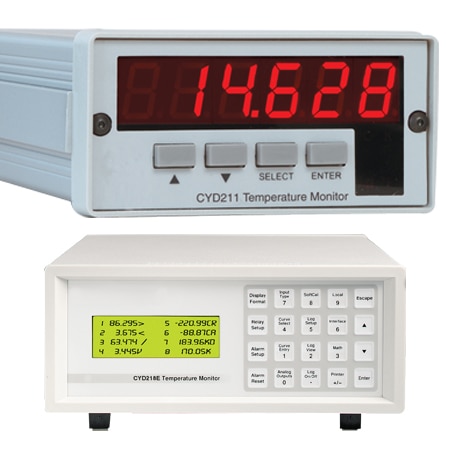

OMEGA CYD218E 8-Channel Benchtop Cryogenic Digital Thermometer Datalogger (Temperature, RS232, datalogger, printer output, ± 0.3 °C)

Width: 217 mm

Height: 90 mm

Length: 317 mm

Memory: 1500

Weight: 0.65 kg

Form factor: Benchtop

Memory Note: 1500 point storage non-volatile memory or continuous to computer

Display Type: LCD

Repeatability: ± 10 mK

Sampling Rate: 16 Hz (16 updates/second)

Data Interface: RS232, datalogger, printer output

Supply Voltage: 100 Vac

Measurement Type: Temperature

Number of Inputs: 8

Display Type Note: LCD display for each of 8 inputs simultaneously displayed, 1000 pixels

Supply Power Type: AC

Data Interface Note: RS232C (protocol and sample programs included)

Temperature Accuracy: ± 0.3 °C

Additional Features 1: RS232, datalogger, and printer output

Thermal Response Time: 2 sec

Number of Measurements: 8

Display Measuring Units: °C, K, Ohm, V

Temperature Sensor Type: RTD

Process Temperature, Max: 800 K

Process Temperature, Min: 1.4 K

Temperature Accuracy Note: Class B, ± 0.3°C (at 0°C), 0.011 K

Operating Temperature, Max: 35 °C

Operating Temperature, Min: 15 °C
