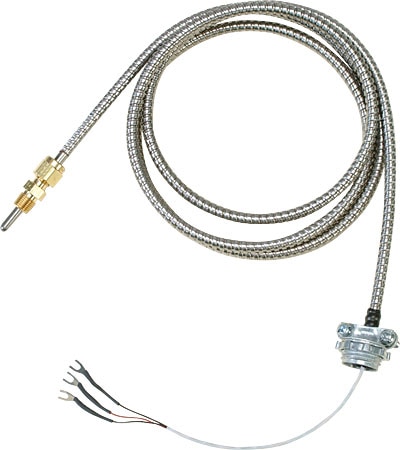

OMEGA CFTF-000-RTD-4-60-1 Extruder RTD Probes with Compression Fittings (NPT Male, 1/8 in, Spade Lugs, 260 °C, Class B)

Bend: Straight

Accuracy: Class B

Wire Type: Stranded

Insulation: PFA with Armored Cable

Probe Type: Extruder RTD Probes with Compression Fittings

Wire Gauge: 26 AWG

Cable Length: 60 in

Probe Length: 4 in

Probe Diameter: 0.1875 in

Number of Wires: 3

Sensing Element: 100 Ω Class “B” DIN Platinum Element

Sheath Material: 304 Stainless Steel

Nominal Resistance: 100 Ω

Cold End Termination: 1

Electrical Connection: Spade Lugs

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 260 °C

Process Temperature, Min: -50 °C

Nominal Resistance/Curve Note: 100 Ω Class “B” Thin-Film DIN Platinum Element
