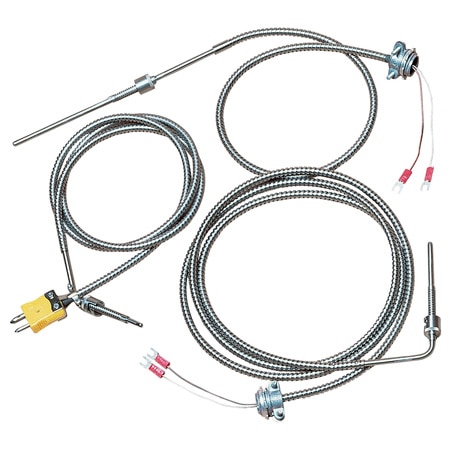

OMEGA BT-090-T-3 1/2-60-1-UNGROUNDED Bayonet Style Thermocouple Probes (Thermocouple, T, 370 °C, Immersion Probe)

Bend: 90 °

Wire Type: Solid

Insulation: Fiberglass

Probe Type: Bayonet Style Thermocouple Probes

Wire Gauge: 20 AWG

Cable Length: 60 in

Probe Length: 3.5 in

Junction Type: Ungrounded

Cable Diameter: 0.275 in

Cable Material: Stainless Steel

Probe Diameter: 0.1875 in

Insulation Note: Glass Braid Insulated 20 Gage Solid Thermocouple Wire

Number of Wires: 2

Sheath Material: 304 Stainless Steel

Thermocouple Type: T

Alloy Material (+): Copper

Alloy Material (-): Constantan

Color Code Standard: ANSI

Cold End Termination: 1

Number of Connectors: N/A

Electrical Connection: Spade Lugs

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: Thermocouple

Process Temperature, Max: 370 °C

Process Temperature, Min: 0 °C

Operating Temperature, Max: 480 °C

Operating Temperature, Min: 0 °C
