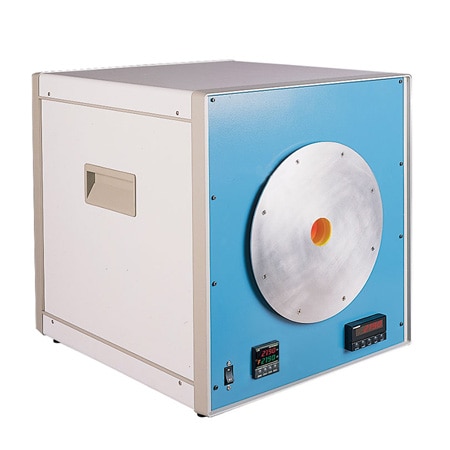

OMEGA BB705 100 °C to 1046 °C Temperature Blackbody Calibrator

Width: 566 mm

Height: 520 mm

Length: 600 mm

Weight: 31 kg

Accuracy: ± 1 °C (± 1.8 °F)

Frequency: 50/60 Hz

Stability: ± 0.4°C

Target Size: 44.5

Control Mode: PID Control

Display Type: LED

Warm Up Time: 80 min

Accuracy Note: ±0.25% of reading; ±1°C

Data Interface: RS232

Stability Note: 0.4°C (0.7°F) per 8-hour period

Supply Voltage: 115 Vac

supply-voltage: 115 Vac

Cavity Emissivity: 0.99

Warm-Up Time Note: 80 minutes from 100°C to 1000°C

Cavity Opening Size: 44.5

Additional Features 1: Portable

Internal Sensing Element: Platinum Thermocouple

Process Temperature, Max: 1046 °C

Process Temperature, Min: 100 °C

Operating Temperature, Max: 35 °C

Operating Temperature, Min: 0 °C
