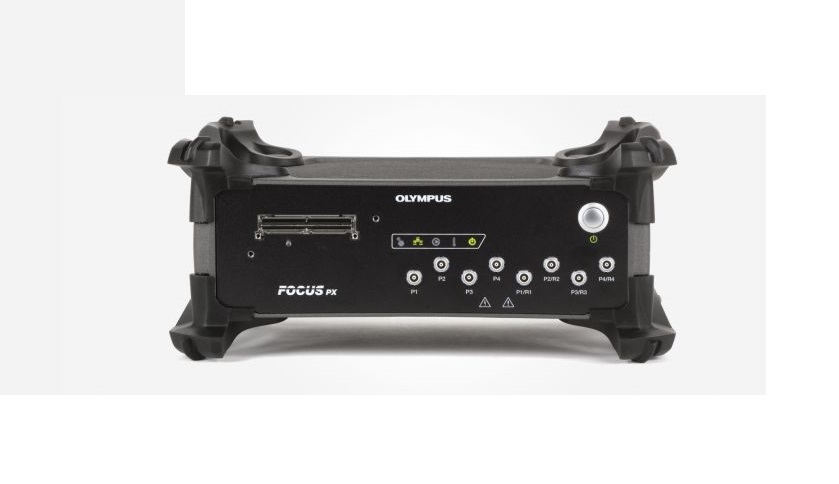

Olympus FPX-UT4-FPC Phased Array Instrumentation Designed for Demanding Inspections

Phased array channels:

16:64PR: 64

16:128PR/32:128PR: 128

Number of pulsers:

16:64PR/16:128PR: 16 consecutive elements

32:128PR: 32 consecutive elements

Conventional UT channels:

4 dedicated UT channels

(8 connectors for pulse-echo and pitch-catch configurations support)

Data acquisition rate:

Up to 30 MB/s (1 FOCUS PX)

Up to 60 MB/s (2 to 4 FOCUS PX)

Acquisition speed: Up to 20000 12-bit A-scans/second of 750 points each

Amplitude resolution: 8-bit / 12-bit

Maximum number of A-scan samples: 16380

Real-time data compression: 1 to 2000 ratio

Rectification: FW, HW+, HW–, and RF

Filtering: Digital band-pass, high-pass and low-pass filters

Voltage:

PA: 4 V, 9 V, 20 V, 40 V, 80 V, and 115 V

UT: 50 V, 100 V, and 190 V

Gain:

PA : 80 dB (46 dB analog + 34 dB digital)

UT : 120 dB (digital)

Pulse width:

PA : 30 ns to 500 ns (steps of 2.5 ns)

UT : 30 ns to 1000 ns (steps of 2.5 ns)

Bandwidth (-3 dB):

PA : 0.6 MHz to 17.8 MHz

UT : 0.25 MHz to 28 MHz

Number of beams: Up to 1024

Pulse repetition frequency (PRF): 1 Hz to 20 kHz

Real-time averaging:

PA : 1, 2, 4, 8, 16

UT : 1, 2, 4, 8, 16, 32, 64

Number of gates: 4 for detection; 1 for synchronization

Encoder: 2 axes (quadrature, clock direction)

Network interface: 1000BASE-T

Size (W x H x D) With bumpers: 30.7 cm × 13.5 cm × 23.6 cm (12 in. × 5.3 in. × 9.3 in.)

Size (W x H x D) Without bumpers: 27.6 cm × 9.2 cm × 23.1 cm (10.9 in. × 3.6 in. × 9.1 in.)

Weight With bumpers: 4.8 kg (10.5 lb)

Weight Without bumpers: 4.2 kg (9.2 lb)

IP rating: IP65
