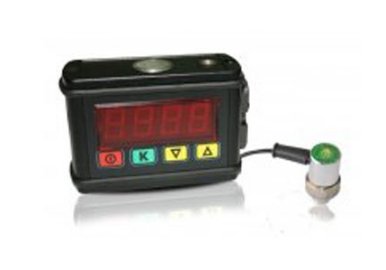

OKO TUZ-5 Ultrasonic thickness gauge

- Range of measuring thicknesses : 0.6-300 mm
- Weight of the thickness gauge with one probe: 0.3 kg
- Overall dimensions of the thickness gauge: 64х89х36 mm
- Time of operating mode setup: 10 s
- Time of continuous operation: 20 hours
- Sealing protection level : IР 64
- Temperature mode: minus 30...+50 ˚С
- Thickness gauge features
+ case is made of metal;
+ small overall dimensions;
+ possibility of thickness gauge fastening on the hand.
- Metrological performance:
- Admissible absolute error ΔН: ± (0.1 + 0.005×Hx) mm
- Admissible relative error δC: ± 1.5 %
- Admissible additional error at the surface roughness of Rz=320 µm: ± 0.2 mm
- Admissible additional error at the surface curvature radius of R=30 mm: ± 0.1 mm
Delivery set
Electronic unit: 1 pc.
Probe: P112-5-10/2-Т-004 : 1 pc.
Charging device: 1 pc.
Hand strap: 1 pc.
Operation manual TUZ-5.14327992.01 RE : 1 pc.
Packing bag: 1 pc.
Verification certificate (If required): 1 pc.
