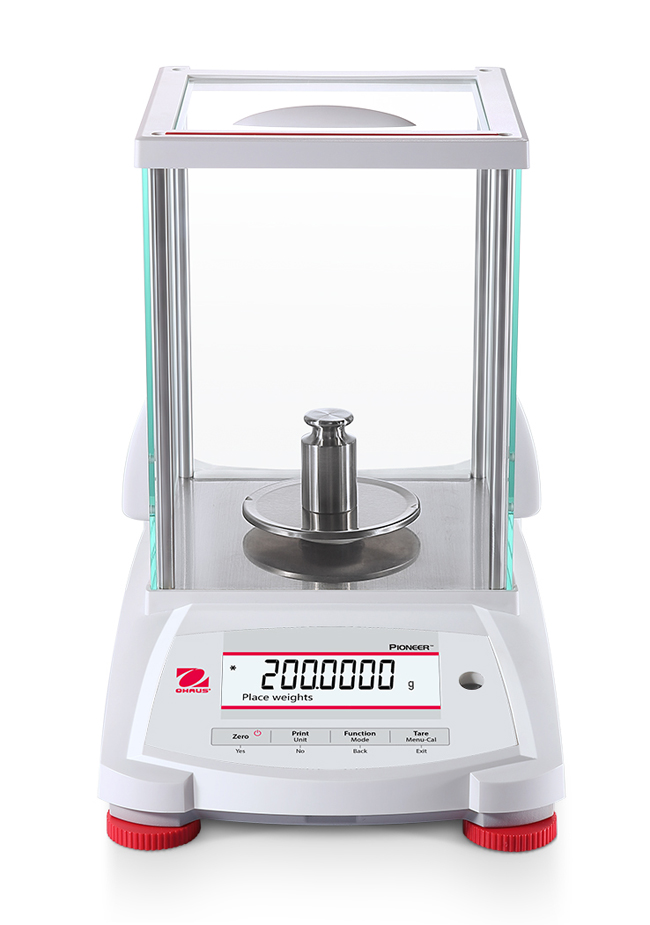

OHAUS PX224 Analytical Balance (220g/0.0001g)

Capacity (g): 220

Readability d, Full Range (g): 0.0001

Repeatability (sd.), ≤5% of Full Load (g): 0.00008

Linearity deviation, Typical (g): ±0.00006

Linearity deviation (g): ±0.0002

Stabilization Time (s): 3

Units: Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Troy Ounce, Grain, Newton, Hong Kong Tael, Singapore Tael,Taiwan Tael, Momme, Tical (MM), Mesghal, Tola (India), Baht, 1 custom unit

Applications: Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation

Pan Size (Ø): 3.15 in. / 80 mm 3.54 in. / 90 mm 4.72 in. / 120 mm

Draftshield Size: 6.8 × 5.2 × 8.1 in. / 172 × 131 × 205 mm

Power Supply: Power Input: 100–240V ~ 200mA 50–60Hz 12–18VA

Power Output: 12 VDC 0.5A

Assembled Dimensions (W × D × H): 8.2 × 12.6 × 12.2 in. / 209 × 321 × 309 mm

Operating Conditions: Operating conditions for ordinary lab application: 50° F to 86° F / +10 to 30° C (operability guaranteed between +5 and 40° C)

Storage Conditions: 14° F to 140° F / -10° C to 60° C at 10% to 90% relative humidity, non-condensing

Net Weight: 10 lb / 4.5 kg
