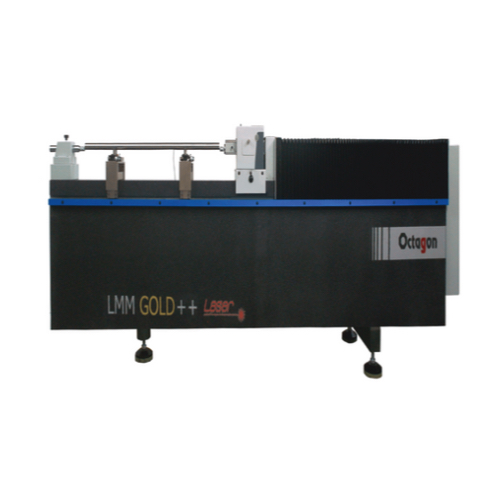

Octagon LMM GOLD++ Length Measuring Machine (1000mm /2000mm /3000mm, 0.1+0.5 L/1000μm)

Measuring Range: Absolute 1000 mm / 2000 mm / 3000 mm

Application Range: Length bars, Gauge blocks 1000 mm / 2000 mm / 3000 mm

Performance Data

Resolution: 0.01 μm

Measurement Uncertainty: 0.1 + 0.5 L / 1000 μm*

Measuring Force: 1N, 2N (Selectable)

LxWxH: 2750 x 380 x 700 mm

Weight (kg): 650 kg

Power Supply: 230 V Single Phase AC, 50 Hz

Display System: PC based

Compressed Air: 3 bar

Note:

Special accuracies, measuring ranges are available upon request.

*Measurement Uncertainty subject to temperature control of 20±2°C with a gradient less than 0.5°C/hr and humidity control of 50%±10% RH.
