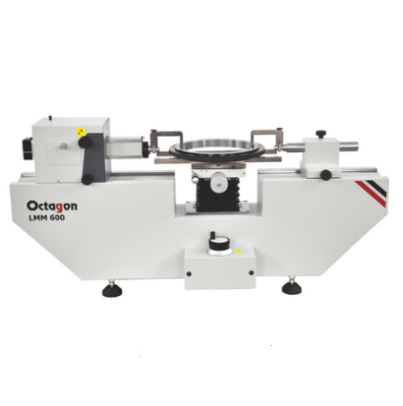

Octagon LMM 600 Universal Length Measuring Machine (600mm, 0.5+ L/1000um)

Measuring Range

Absolute: 100 mm

Differential: 600 mm

Application Range

External Plain: 0-600 mm

Internal Plain: 3 to 450 mm

Cylindrical Thread External (d2) (Pitch: 0.2 - 6 mm): 1 - 550 mm

Cylindrical Thread Internal (D2) (Pitch: 0.5 - 6 mm): 3 - 450 mm

Gear External (MdK): 7 - 550 mm

Gear Internal (MdK): 30 - 450 mm

Measuring Instruments

Dial Indicators, Dial test indicators, Cylinder bore gauges: up to 100 mm

Internal Micrometer - 2 point: 600 mm

External Micrometer: 400 mm

Performance data

X axis resolution: 0.1 pm

Measurement uncertainty: 0.5+ L/1000pm

Measuring force: 0.2 N.2N

Work Table /Vertical Axis

Work table dimension: 160X160 mm

Height adjustment: 100 mm

Resolution: 0.1 pm

Float: 20 mm

Rotation: ±1.5°

Tilt: ±1.5°

Load Capacity: 20 kg

Dimensions, weight and operational conditions

LxWxH: 1150x250x470 mm

Weight (kg): 120 kg

Power supply: 230 VAC, 50 Hz

Display System: DRO/PC based

Datasheet
