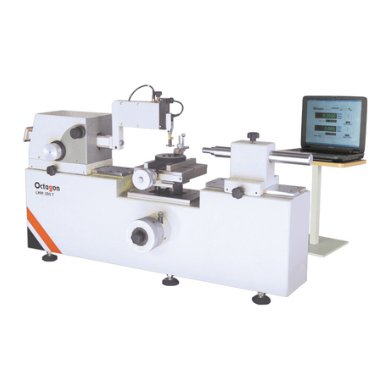

Octagon LMM 400 Universal Length Measuring Machine (400mm, 0.5+ L/1000µm)

Measuring Range

Absolute: 100 mm

Differential: 400 mm

Application Range

External Plain: 0-400 mm

Internal Plain: 3 to 300 mm

Cylindrical Thread External (d2) (Pitch: 0.2 - 6 mm): 1 - 350 mm

Cylindrical Thread Internal (D2) (Pitch: 0.5 - 6 mm): 3 - 300 mm

Gear External (MdK): 7 - 300 mm

Gear Internal (MdK): 30 - 300 mm

Measuring Instruments

Dial Indicators, Dial test indicators, Cylinder bore gauges: up to 100 mm

Internal Micrometer - 2 point: 400 mm

External Micrometer: 150 mm

Performance data

X axis resolution: 0.1 pm

Measurement uncertainty: 0,5+ L/1000µm

Measuring force: 0.2 N.2N

Work Table /Vertical Axis

Work table dimension: 160X160 mm

Height adjustment: 75 mm

Resolution: 0.1 pm

Float: 20 mm

Rotation: ±1.5°

Tilt: ±1.5°

Load Capacity: 15 kg

Dimensions, weight and operational conditions

LxWxH: 850 X 250 X 470 mm

Weight (kg): 70 kg

Power supply: 230 VAC, 50 Hz

Display System: DRO/PC based
