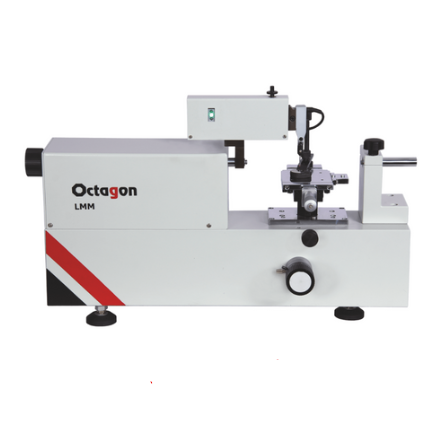

Octagon LMM 40 Universal Length Measuring Machine (80 mm, 0.5+ L/1000µm)

Measuring Range

Absolute: 40 mm

Differential: 80 mm

Application Range

External Plain: 0-80 mm

Internal Plain: 1-60 mm

Cylindrical Thread External (d2) (Pitch: 0.2 - 6mm): 1-60 mm

Cylindrical Thread Internal (D2) (Pitch: 0.5 - 6mm): 3-40 mm

Performance data

X axis resolution: 0.1 pm

Measurement uncertainty: 0.5+ L/1000µm

Measuring force: 0.2 N, 0.5 N,1 N

Work Table/Vertical Axis

Work table dimension: 75 X 75 mm

Height adjustment: 30 mm

Float: 14 mm

Rotation: ±1.5’

Tilt: ±1.5°

Load Capacity: 1 kg

Dimensions, weight and operational conditions

LxWxH: 560x220x360 mm

Weight (kg): 40 kg

Power supply: 230 VAC, 50 Hz

Display System: DRO
