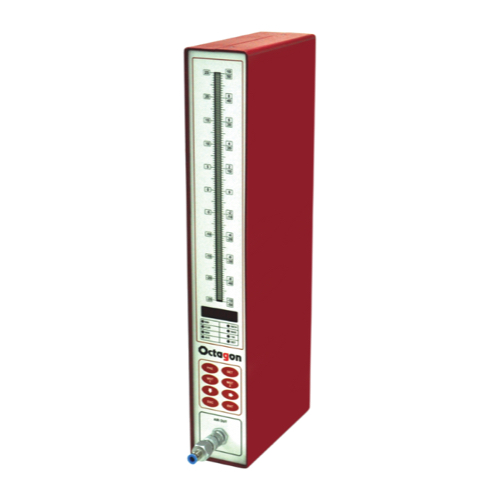

Octagon Air Electronic Column Gauge Column Gauge Displays (Piezo Air Sensor)

Input Sensor: Piezo Air Sensor

Input Channels: 1

Measurement: Static/Dynamic Reading

Readout: Absolute/Comparative Measurement

Bar Graph: Single Tri-Colour LED for Component Status (Red - Reject, Green - OK, Yellow - Rework)

Bar Graph Ranges: 10, 25, 100, 250, 500

Sound Signal: Buzzer for Out-of-Tolerance Values

Modes: Current, Max, Min, TIR (ID/OD)

Calibration: 2-point Auto Calibration

PC Interface: RS-232

Display: 6-Digit, 7-Segment

Footswitch: Available

Scale: mm, inch

Resolution: F1, F2, F3, F4

Measuring Range:

0.1 μm: -9.9999 mm to 99.9999 mm

1 μm: -99.999 mm to 999.999 mm
