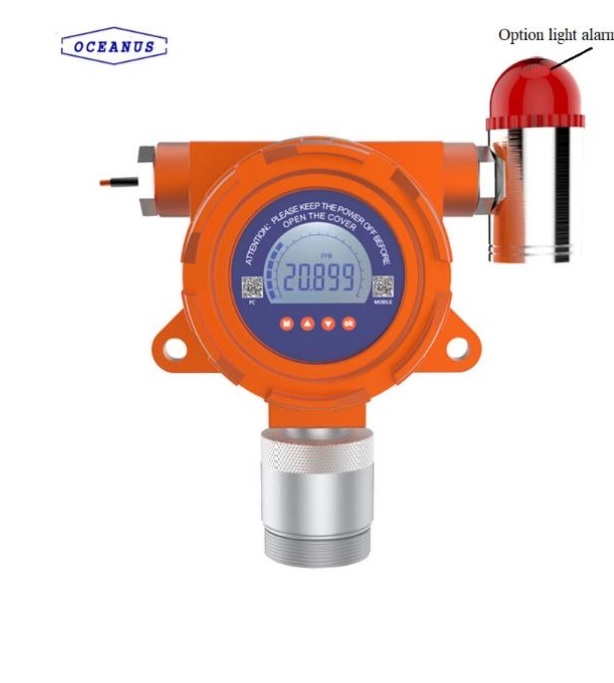

Oceanus OC-F08 N2 Fixed gas detector (0-100%vol)

Applicable gas: N2

Probe range: 0 ~ 100%vol

Sampling: Selectable: diffusion or suction pump, circulation

Accuracy: ± 3% F.S

Repeatability: ± 1%

Zero departure: ≤ ± 1% (F.S/year)

Sensor type: Electrochemical sensor

Response time: (T90) 20s

Alarm mode: Audible alarm (optional)

Operating environment

Temperature: -30℃ ~ 60℃ (Customized according to specific needs)

Humidity: ≤95% rh (non-condensing); if > 90% rh, can add filter

Pressure: 86kPa ~ 106kPa

Working voltage: 24V DC (16~30VDC)

Output signal

(Standard) 4~20mA standard output signal three-wire system, available compatible with PLC, DCS, etc;

(Optional) Standard RS485 output signal four-wire system;

(Optional) The output signal frequency is 200 ~ 1000Hz;

Two-level relay output: 220vAC 0.5A, 5VDC 0.5A

Mounting medium: Wall mount, Pipe type (Thread: M40 * 1.5)

Body material: Die-cast aluminum

Explosion-proof index: Ex d IIC T6

Protection level: IP66

Electrical interface: 3/4 NPT (nut) 1/2 NPT (nut)

Transmission distance: 2000m

Dimensions: 210 mm × 140 mm × 92 mm L × W × H

Weight: About 1.5Kg

Standard: GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010

Option: See documentation or contact us to choose a more suitable measuring range if needed.
