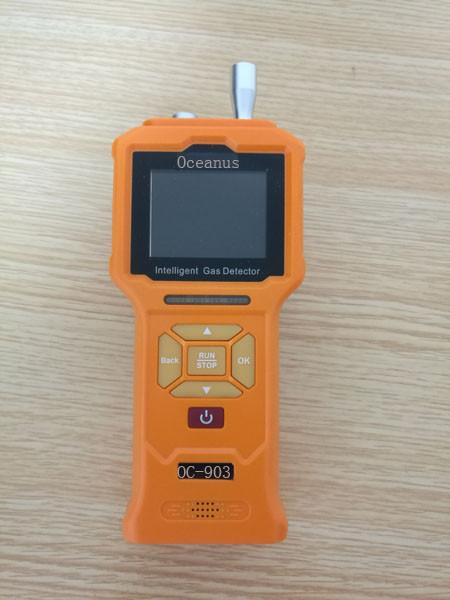

Oceanus OC-903 Portable Carbon Dioxide CO2 gas detector (CO2: 0~10000ppm)

Gas type: Carbon Dioxide(CO2)

Sensor Type: Infrared sensor

Measuring range: 0~10000ppm or customized

Display Information: Gas type, concentration unit, value, Time, Temperature, Humidity, pump and battery status.

Resolution: 1ppm or 0.01%vol

Precision: ≤±2%F.S

Sampling method: Pump-suction sampling, flow rate of 100~1000mL/min.(Adjustable)

Data logger function: About 100,000 group of data capacity.

Response time: ≤20s/10s

Recovery time: ≤20s

Repeatability: ≤±1%

Linearity: ≤±1%

Zero drift: ≤±1%(F.S/year)

Working Environment:

Working Temperature: -30~60 degree

Working Humidity: 0~95%RH (non-condensing)

Working pressure: -30Kpa~100Kpa

Explosion-proof Grade: Ex ia IIC T4 Ga

Protection Grade: IP65

Alarm mode: Audible-visual-vibration alarm

Dimensions: 180mm

Weight: 500g

Accessory: Box, Instruction, USB charger, Data line, Calibration cap, CD.

Option: For other measuring ranges please see datasheet or Contact us to customize the suitable one.
