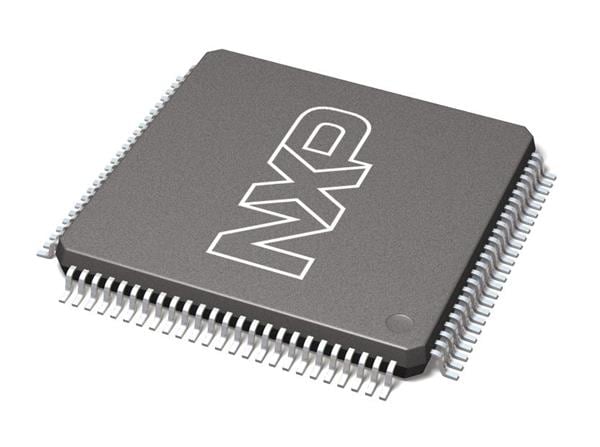

NXP S32K311NHT0VPAST ARM Microcontrollers S32K311, CES, 100 MaxQFP

Core: ARM Cortex M7

Data RAM Size: 128 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

DAC Resolution: 8 bit

Data Bus Width: 32 bit

Interface Type: CAN, I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 84 I/O

Watchdog Timers: Watchdog Timer

Processor Series: S32K3xx

Moisture Sensitive: Yes

Program Memory Size: 1 MB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.97 V

Number of ADC Channels: 24 Channel

Maximum Clock Frequency: 120 MHz

Operating Supply Voltage: 2.97 V to 5.5 V

Number of Timers/Counters: 2 x 16 bit

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
