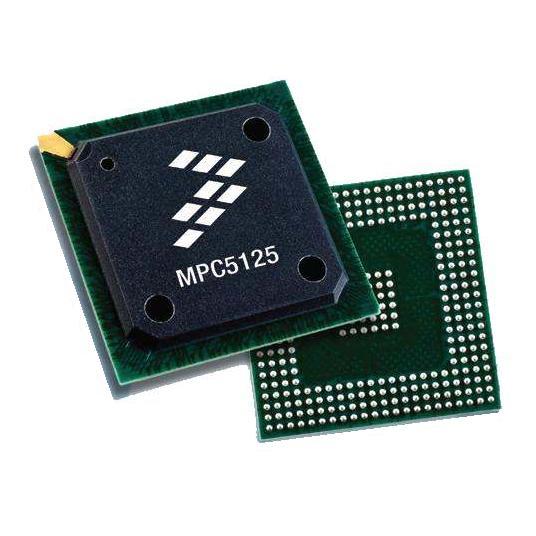

NXP MPC5125YVN400 Microprocessors - MPU POWERPC EMBEDDED SOC SOC

Core: e300

I/O Voltage: 1.8 V, 2.5 V, 3.3 V

Memory Type: L1 Cache, SRAM

Unit Weight: 1.714 g

Data RAM Size: 128 kB

Data Bus Width: 32 bit

Interface Type: CAN, Ethernet, I2C, USB

Mounting Style: SMD/SMT

Number of Cores: 1 Core

Watchdog Timers: Watchdog Timer

Processor Series: e300

Moisture Sensitive: Yes

L1 Cache Data Memory: 32 kB

Maximum Clock Frequency: 400 MHz

Operating Supply Voltage: 1.4 V

L1 Cache Instruction Memory: 32 kB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
