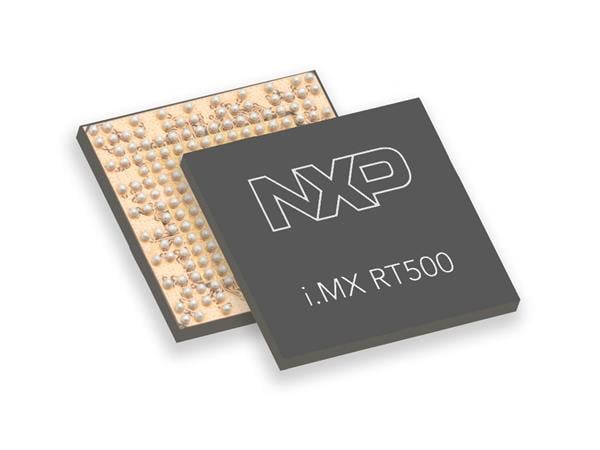

NXP MIMXRT533SFFOCR ARM Microcontrollers - MCU i.MXRT500,FOWLP,Sec,B2

Core: ARM Cortex M33

I/O Voltage: 1.71 V to 1.89 V

Data RAM Size: 3 MB

Data RAM Type: SRAM

Data ROM Size: 192 kB

Data ROM Type: ROM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C, I2S, I3C, SPI, USART

Mounting Style: SMD/SMT

Watchdog Timers: Watchdog Timer, Windowed

Processor Series: i.MX RT500

Program Memory Size: 0 B

Supply Voltage - Max: 1.155 V

Supply Voltage - Min: 700 mV

Analog Supply Voltage: 1.71 V to 1.89 V

Number of ADC Channels: 6 Channel

Maximum Clock Frequency: 275 MHz

Number of Timers/Counters: 7 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C
