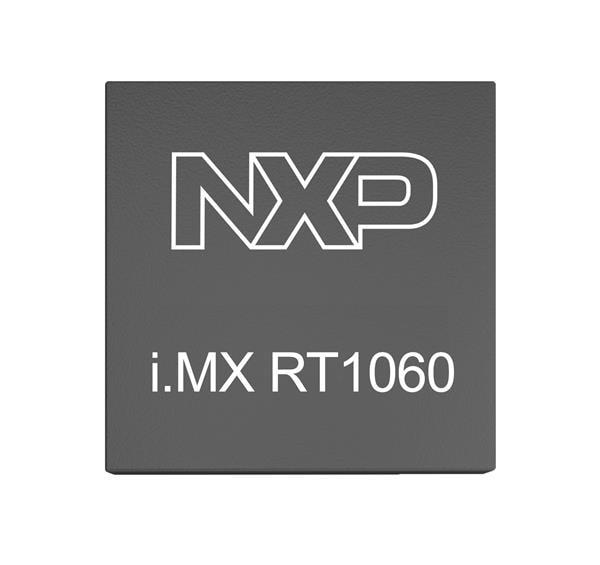

NXP MIMXRT1061XVN5B ARM Microcontrollers - MCU i.MXRT106X, 13x13

Core: ARM Cortex M7

Data RAM Size: 1 MB

Data RAM Type: OCRAM

Data ROM Size: 128 kB

Data ROM Type: ROM

ADC Resolution: 2 x 12 bit

DAC Resolution: 6 bit

Data Bus Width: 32 bit

Interface Type: Audio, Ethernet, FlexCAN, I2C, MIPI-CSI, SPI, UART, USB 2.0 OTG

Mounting Style: SMD/SMT

Number of I/Os: 149 I/O

Watchdog Timers: Watchdog Timer

Processor Series: i.MX RT1060

Program Memory Size: 0 B

Supply Voltage - Max: 1.3 V

Supply Voltage - Min: 1.15 V

Number of ADC Channels: 20 Channel

Maximum Clock Frequency: 600 MHz

Number of Timers/Counters: 10 Timer

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
