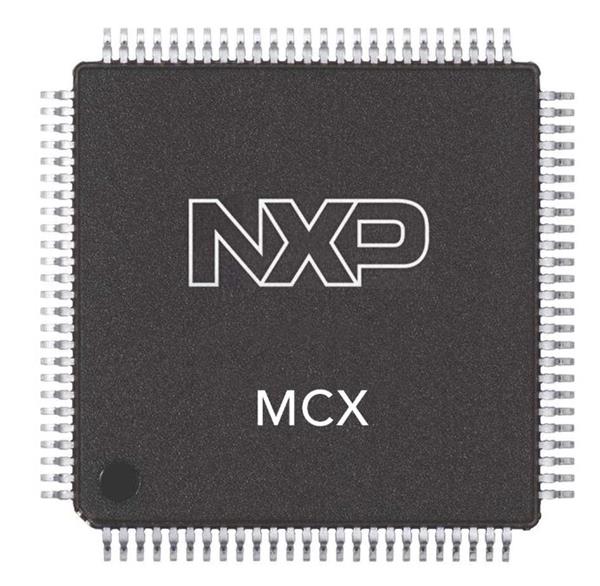

NXP MCXN947VNLT ARM Microcontrollers - MCU MCXN10, 100HLQFP

Core: ARM Cortex M33

Data RAM Size: 512 kB

Data RAM Type: SRAM

ADC Resolution: 2 x 16 bit

DAC Resolution: 8 bit, 2 x 12 bit, 14 bit

Data Bus Width: 32 bit

Interface Type: CAN FD, Ethernet, I2C, LP Flexcomm, MIPI-I3C, SAI, SDIO, SPI, UART, USB

Mounting Style: SMD/SMT

Number of I/Os: 78 I/O

Watchdog Timers: Watchdog Timer, Windowed

Moisture Sensitive: Yes

Program Memory Size: 2 MB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.71 V

Maximum Clock Frequency: 150 MHz, 150 MHz

Number of Timers/Counters: 5 x 32 bit

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
