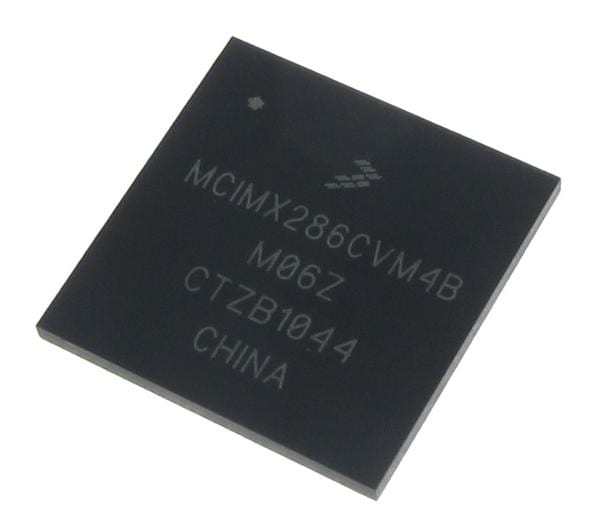

NXP MCIMX286CVM4B Processors - Application Specialized CATSKILLS REV 1.2

Core: ARM926EJ-S

Application: Consumer, Embedded Industrial

Memory Type: DDR, DDR2, NAND Flash, LV-DDR2, SRAM

Unit Weight: 465.400 mg

Data RAM Size: 128 kB

Data ROM Size: 128 kB

Data Bus Width: 32 bit

Interface Type: Audio, Ethernet, PCI-e, Serial, USB

Mounting Style: SMD/SMT

Number of Cores: 1 Core

Watchdog Timers: Watchdog Timer

Processor Series: i.MX28x

Moisture Sensitive: Yes

L1 Cache Data Memory: 32 kB

Maximum Clock Frequency: 454 MHz

Operating Supply Voltage: 1.35 V to 1.55 V, 1.62 V to 2.1 V, 5 V

Number of Timers/Counters: 4 x 32 bit

L1 Cache Instruction Memory: 16 kB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
